Professional Combustion Engine Hot Water Pressure Cleaners

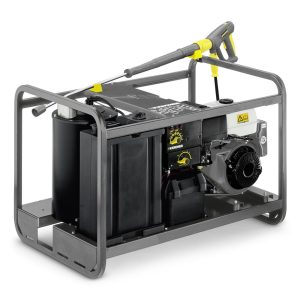

HDS 1000 BE

Recommended maximum hours of use in hours/day.

Machine Specifications

1.811-942.0

MILD STEEL COIL

Pressure - 580 - 3045 PSI (operating)

Pressure - 3335 PSI (max)

Water Flow - 7.5 - 15 l/min

Engine Performance - Honda 389cc GX390 Petrol Engine with electric start

Engine fuel tank capacity - 6.5 litres

Engine fuel consumption at full load - 4.2 l/hr

Burner fuel tank capacity - 34 litres

Maximum consumption of heating oil - 5.6 l/hr

Minimum water supply hose length - 7.5 m

Minimum water supply hose diameter - 3/4 in

Min. feed volume - 16.7 l/min

Max. Feed Temperature - 30°C

Weight - 175 kg

Detergent Application via - detergent suction hose with filter and flow adjustment

Dimensions (LxWxH) 1100mm x 750mm x 785mm

Standard Accessories

15m steel braided high pressure hose, EASY!Force Advanced trigger gun, 1050mm spray lance, anti-twist AVS, servo control, manual triple nozzle (0°,25°,40°), EASY!Lock quick-release fasteners on hose and lance, brass pump.

Warranty

2 Year Commercial Warranty

(3 Year Honda Australia Warranty on GX Engine)

Downloads

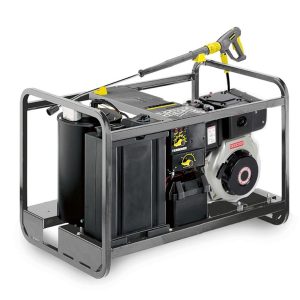

HDS 1000 DE
