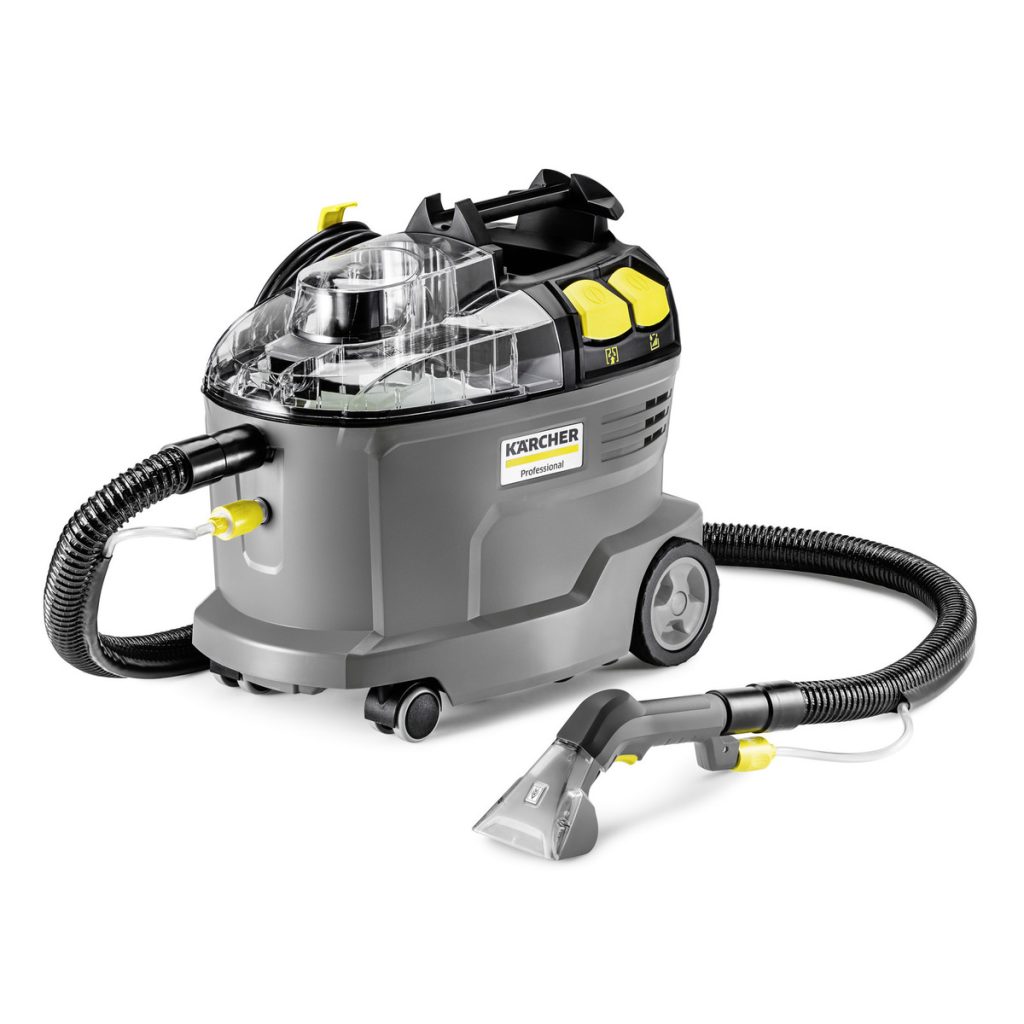

1.100-240.0
10AMP SINGLE PHASE
Max. area performance - 12-18 m²/h
Air quantity - 71 litres/sec
Vacuum - 270 mbar
Spray rate - 1 L/min
Spray pressure - 14.5 psi (1 bar)
Fresh/dirty water tank capacity - 8 / 7 litre
Max. temp of cleaning solution - 50ºC
Max. power rating turbine - 1200 W
Max. power rating pump - 40 W
Power cord length - 7.5 m
Sound pressure level - 71 dB(A)
Weight - 8.6 kg
Dimensions (LxWxH) 524mm x 332mm x 442mm
2.5m spray hose, short upholstery nozzle (110mm wide) with integrated handle for Puzzi, integrated accessory holder for hand tool, cable hook, removable 2-in-1 container for fresh/dirty water, sample RM760 cleaning tabs - 2 units.

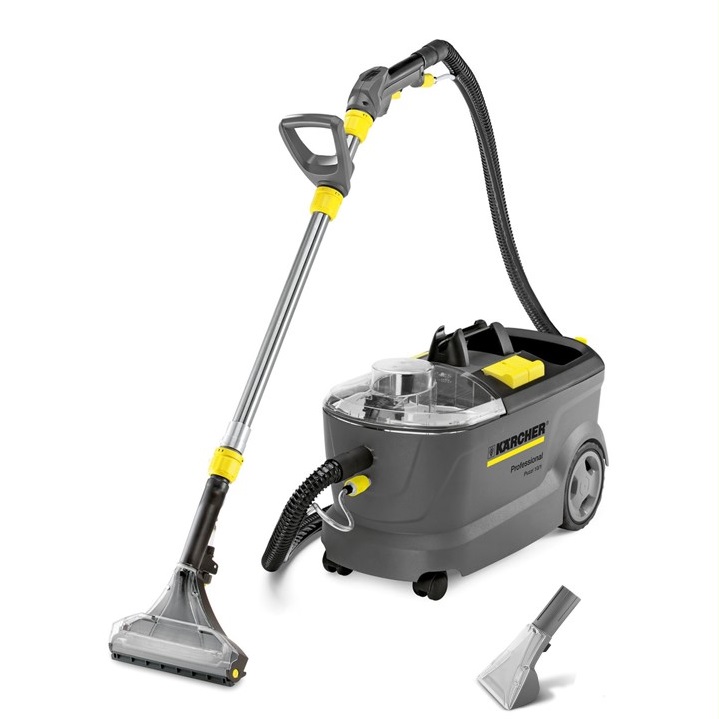

1.100-137.0
10AMP SINGLE PHASE
Max. area performance - 20-25 m²/h
Air quantity - 74 litres/sec
Vacuum - 254 mbar
Spray rate - 1 L/min
Spray pressure - 14.5 psi (1 bar)
Fresh/dirty water tank capacity - 10 / 9 litre
Max. temp of cleaning solution - 50ºC
Max. power rating turbine - 1250 W
Max. power rating pump - 40 W
Power cord length - 7.5 m
Sound pressure level - 71 dB(A)
Weight - 10.5 kg
Dimensions (LxWxH) 709mm x 322mm x 438mm
2.5m spray hose, spray/suction gun, 110mm upholstery nozzle, 240mm floor nozzle, 700mm spray/suction tube, D handle for spray/suction tube, integrated accessory holder for hand/upholstery tool and floor tool, removable 2-in-1 container for fresh/dirty water, sample RM760 cleaning tabs - 2 units.
1.101-120.0
10AMP SINGLE PHASE
Max. area performance - 60-75 m²/h
Air quantity - 74 litres/sec
Vacuum - 254 mbar
Spray rate - 3 L/min
Spray pressure - 58 psi (4 bar)
Fresh/dirty water tank capacity - 30 / 15 litre
Max. temp of cleaning solution - 50ºC
Max. power rating turbine - 1200 W
Max. power rating pump - 70 W
Power cord length - 15 m
Sound pressure level - 66 dB(A)
Weight - 26 kg
Dimensions (LxWxH) 580mm x 460mm x 930mm
4m spray hose, spray/suction gun, 110mm upholstery nozzle, 350mm floor nozzle, 700mm spray/suction tube, D handle for spray/suction tube, removable container for dirty water, sample RM760 cleaning tabs - 2 units, power socket for PW 30.
1.913-103.0
9.507-459.0 Pack Order Number

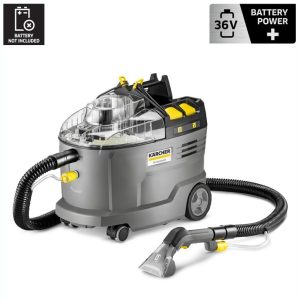

(1.101-700.0 machine)
36 V BATTERY PLATFORM
Area performance - 12-18 m²/h
Air quantity - 57 litres/sec
Vacuum - 150 mbar
Spray rate - 0.55 L/min
Spray pressure - 23.2 psi (0.16 mpa)
Rated input power - 575 W
Rated power pump - 4 W
Rated power turbine - 550 W
Fresh/dirty water tank capacity - 9 / 7 litre
Max. temp of cleaning solution - 50ºC
Sound pressure level - 70 dB(A)
Number of batteries required - 1
Max. runtime per battery charging (6.0 Ah / 7.5 Ah) - 27 min / 35 min
6.0Ah Battery charging time with fast charger (80% / 100%) - 44 min / 68 min
7.5Ah Battery charging time with fast charger (80% / 100%) - 58 min / 92 min
2.5m spray hose, short upholstery nozzle (110mm wide) with integrated handle for Puzzi, integrated accessory holder for hand tool, cable hook, removable 2-in-1 container for fresh/dirty water, sample RM760 cleaning tabs - 2 units.
Pack includes 1 x Battery Power+ 36/75 (7.5 Ah battery) and 1 x Battery Power+ 36/60 fast charger.

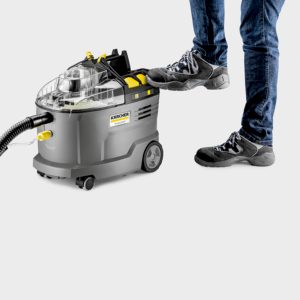

Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.

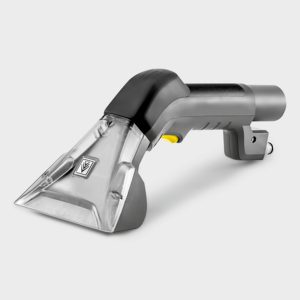

Ideal for use in tight spaces (e.g. vehicle interiors). Ergonomic design. Comfortable handle and good to the touch.
2.445-051.0
2.042-022.0
Weight - 1.527 kg
2.445-043.0
Weight - 2.074 kg
