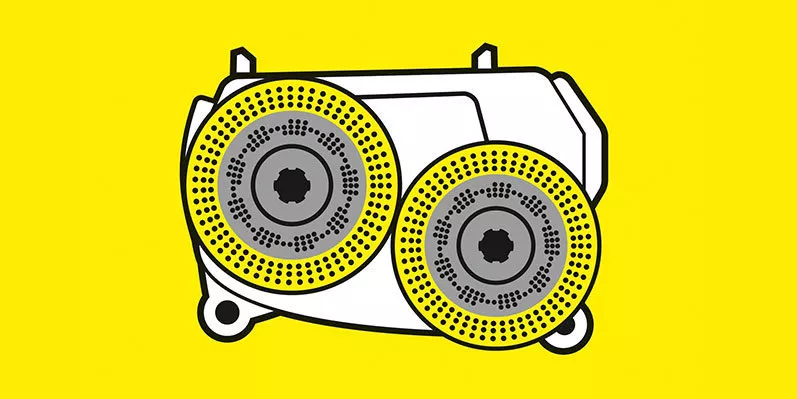

Not all models offer the choice of brushes when purchasing a machine to perform your cleaning task. We can advise you on what would be effective for your requirements, however, if you choose a model that does, below are some things to consider:

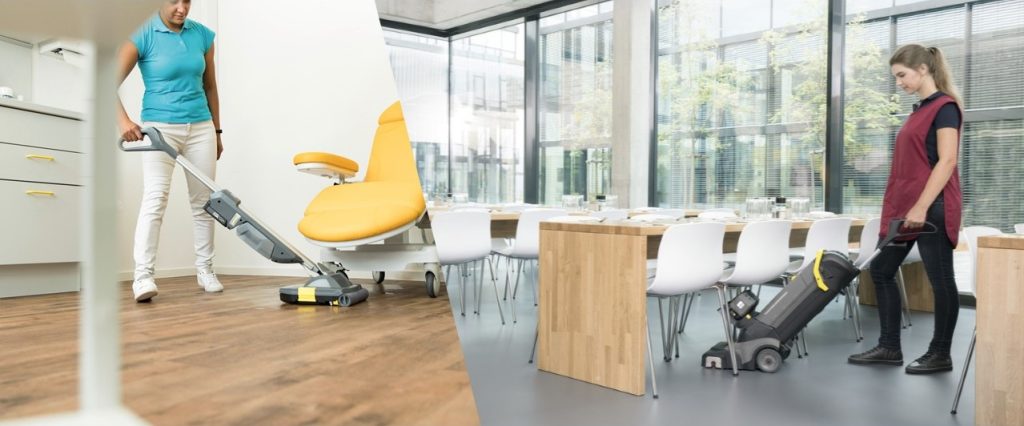

Developed for the fast and flexible cleaning of small to medium-sized areas like in restaurants, shops, kitchens, hotels and other highly frequented areas heavily-furnished: our push scrubber driers.

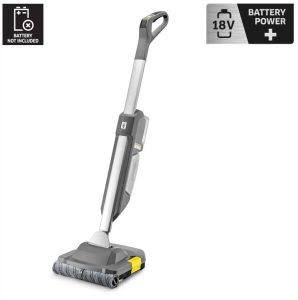

1.783-054.0
(3.0 Ah Pack Order Number 9.507-760.0)
18 V BATTERY PLATFORM
MANUAL PUSH (assisted by brush rotation)
Theoretical area performance - 200 m²/hr
Fresh water tank - 1 litre
Dirty water tank - 0.7 litre
Working width, brush - 300 mm
Brush rotation speed (std power / boost) - 500 / 650 rpm
Water consumption - 0.03 litres/min
Number of batteries required - 1
Max. runtime per battery charging - 45 mins
3.0 Ah battery charging time with fast charger - 39 min (80%) : 60 min (100%)
Max sound pressure level - 55 dB(A)
Standard roller brush, 2 tank system.
Pack includes 1 x 3.0 Ah Battery Power+ 18/30 (2.445-042.0) and 1 x Battery Power+ 18V charger (2.445-050.0).

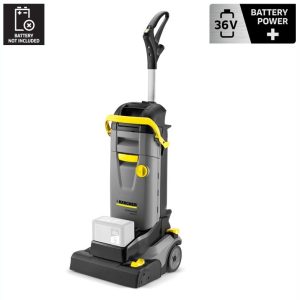

1.783-234.0
(7.5 Ah Pack Order Number 9.507-754.0)
36 V BATTERY PLATFORM
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 200 m²/hr
Fresh water tank - 4 litres
Dirty water tank - 4 litres
Working width, brush - 300 mm
Working width, vacuum - 300 mm
7.5Ah Battery charging time with fast charger (80% / 100%) - 58 min / 92 min
Brush rotation speed - 1450 rpm
Air quantity - 24 litres/sec
Water consumption - 0.3 litres/min
Sound pressure level - 70.5 dB(A)
Standard roller brush, 2 straight std squeegees, 2 tank system.
Pack includes 1 x 7.5 Ah Battery Power+ 36/75 (2.445-043.0) and 1 x Battery Power+ 36/60 fast charger (2.445-051.0).

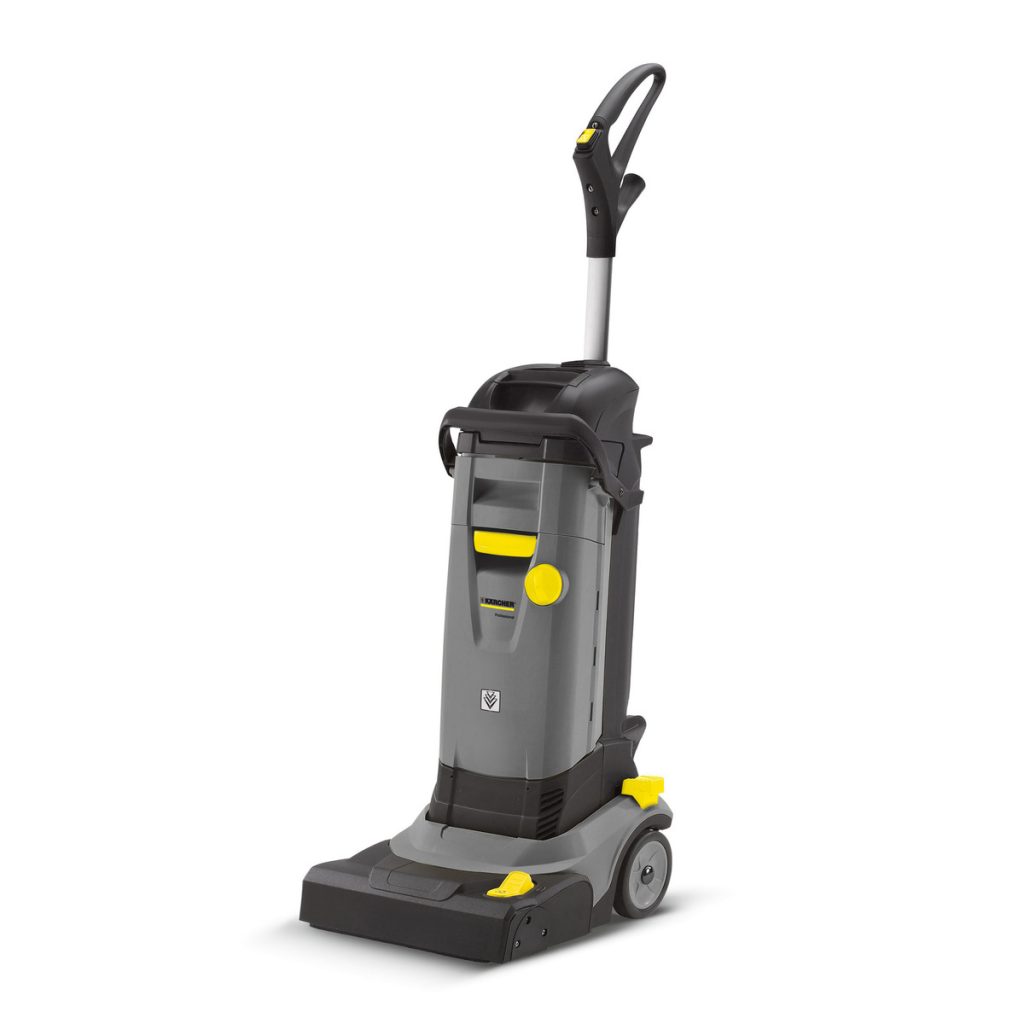

1.783-220.0
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 200 m²/hr
Fresh water tank - 4 litres
Dirty water tank - 4 litres
Working width, brush - 300 mm
Working width, vacuum - 300 mm
Brush rotation speed - 1450 rpm
Power cord length - 10 m
Air quantity - 24 litres/sec
Water consumption - 0.3 litres/min
Max. sound pressure level - 72 dB(A)
Standard roller brush, 2 straight std squeegees, 2 tank system.
1.783-311.0
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 400 m²/hr
Fresh water tank - 10 litres
Dirty water tank - 10 litres
Working width, brush - 400 mm
Working width, vacuum - 400 mm
Brush contact pressure - 100 - 200 g/cm²
Brush rotation speed - 1100 rpm
Power cord length - 10 m
Water consumption - 1 litre/min
Aisle turning width - 1050 mm
Max. sound pressure level - 75 dB(A)
2 x standard roller brushes, 2 x standard straight squeegees, 2 tank system, two tank system, adjustable contact pressure.

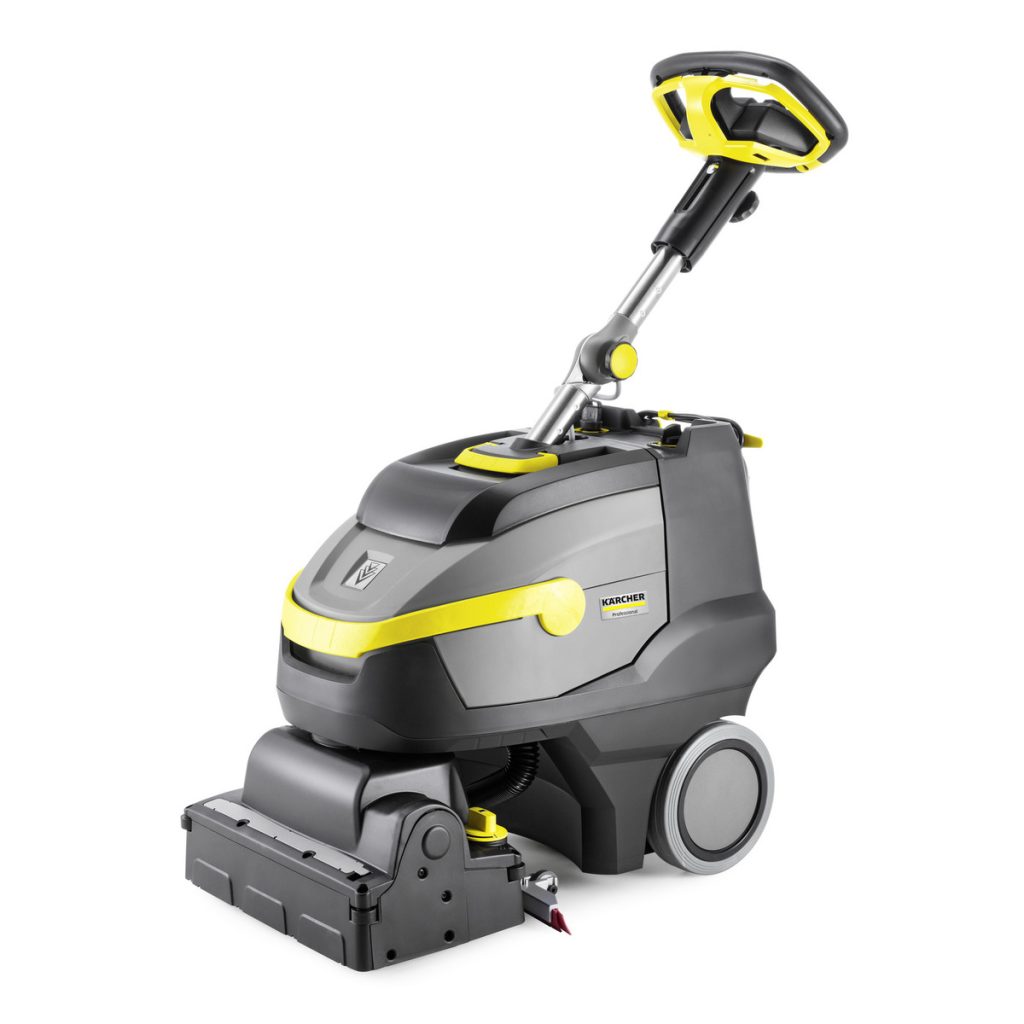

1.783-467.0
RECHARGEABLE LI-ION BATTERY
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 1400 m²/hr
Fresh water tank - 12 litres
Dirty water tank - 12 litres
Working width, brush - 350 mm
Working width, vacuum - 450 mm
Brush rotation speed - 700 - 1500 rpm
Water consumption - 1 litre/min
Battery voltage - 25.2 V
Battery capacity - 21 Ah
Max. battery runtime - 1.5 hours
Approx. battery charging time - 2.7 hours
Aisle turning width - 1050 mm
Max. sound pressure level - 65 dB(A)
Standard roller brush, straight squeegee, 2 tank system, onboard battery charger, Li-ion maintenance-free battery, variable contact pressure, foldable handle for storage, adjustable handle for operator convenience.
KART (Karcher Advanced Response Technology) rotatable brush head turns +/- 200º, allowing cleaning in reverse and at right angles.

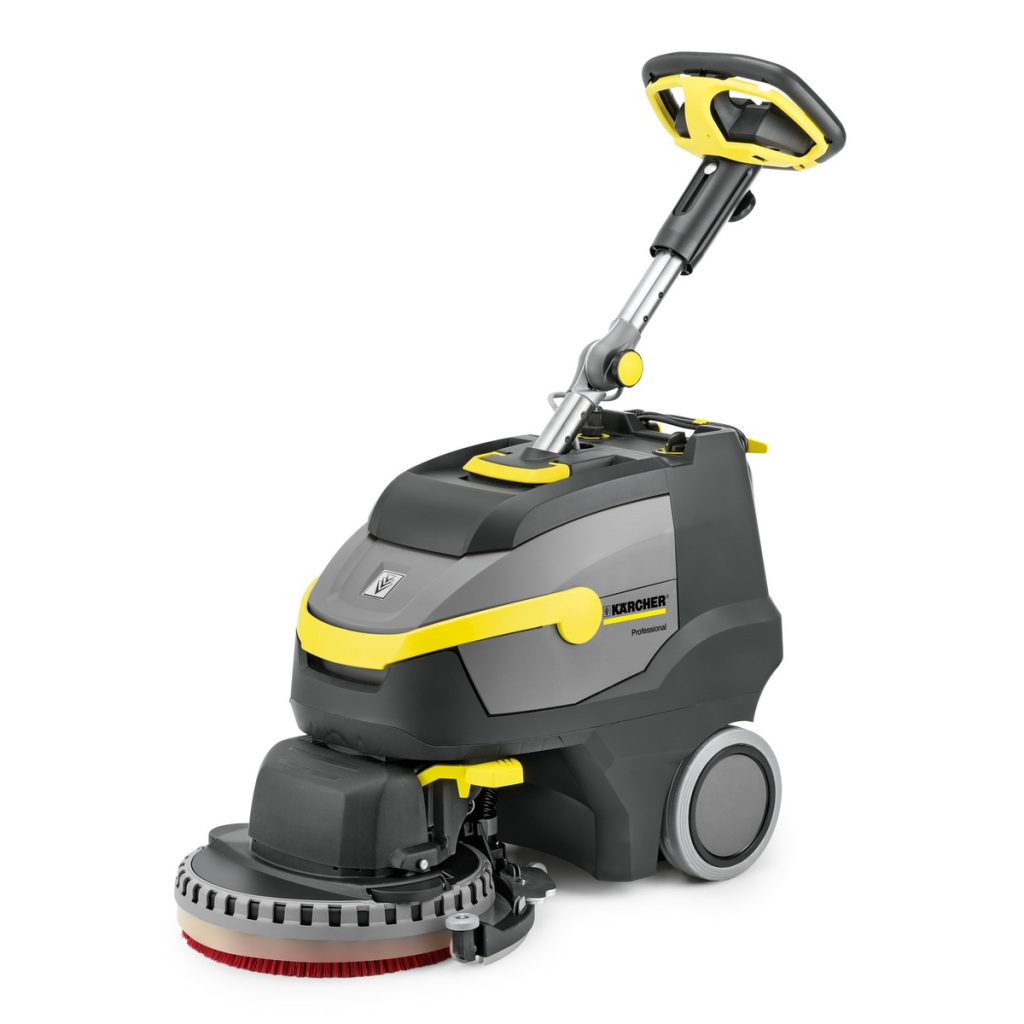

1.783-430.0
RECHARGEABLE LI-ION BATTERY
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 1520 m²/hr
Fresh water tank - 12 litres
Dirty water tank - 12 litres
Working width, brush - 380 mm
Working width, vacuum - 480 mm
Brush rotation speed - 180 rpm
Water consumption - 1 litre/min
Battery voltage - 25.2 V
Battery capacity - 21 Ah
Max. battery runtime - 1.5 hours
Approx. battery charging time - 2.7 hours
Aisle turning width - 1050 mm
Max. sound pressure level - 65 dB(A)
Standard disc brush, curved squeegee, 2 tank system, onboard battery charger, Li-ion maintenance-free battery, variable contact pressure, foldable handle for storage, adjustable handle for operator convenience.

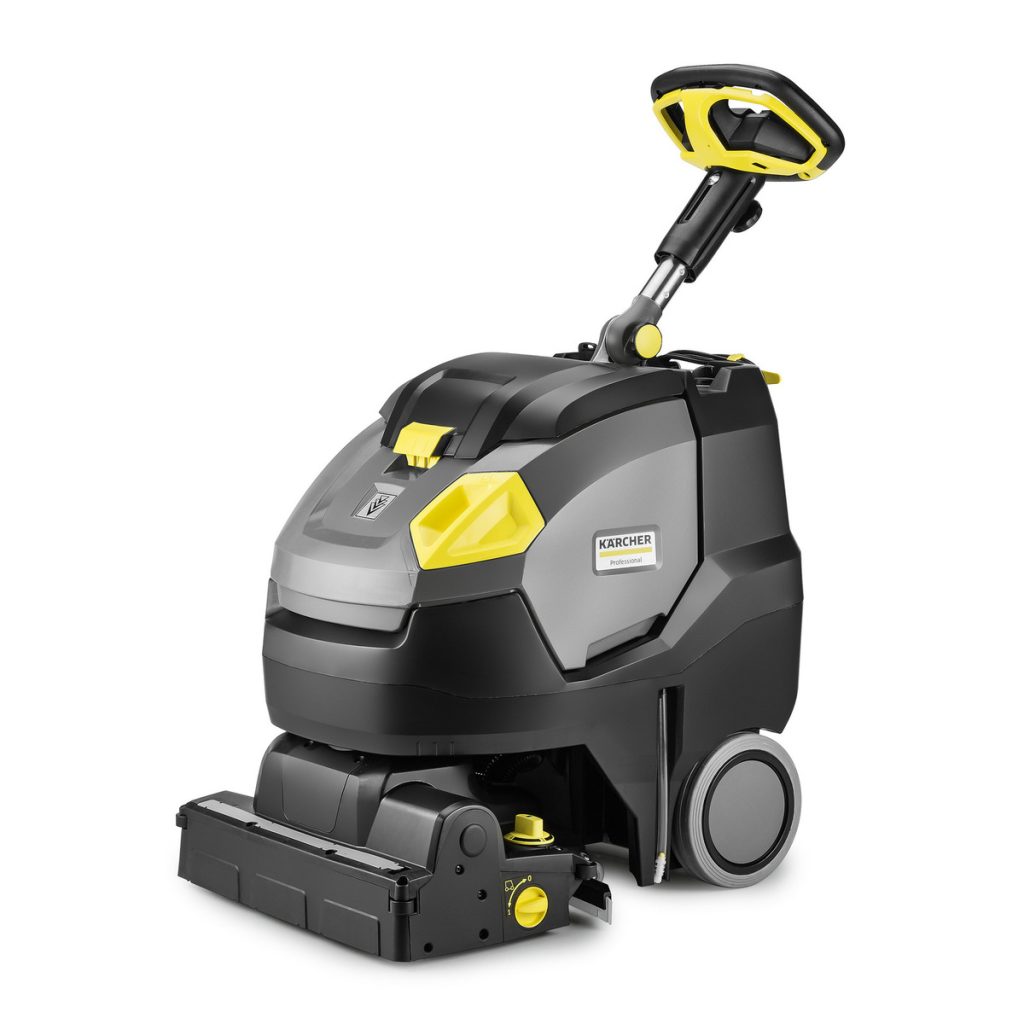

1.783-460.0
RECHARGEABLE LI-ION BATTERY
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 1800 m²/hr
Fresh water tank - 22 litres
Dirty water tank - 22 litres
Working width, brush - 450 mm
Working width, vacuum - 500 mm
Brush rotation speed - 750 - 1050 rpm
Water consumption - 1 litre/min
Battery voltage - 25.2 V
Battery capacity - 42 Ah
Max. battery runtime - 2 hours
Approx. battery charging time - 5 hours
Aisle turning width - 1050 mm
Max. sound pressure level - 66.5 dB(A)
Standard roller brush, straight squeegee, 2 tank system, onboard battery charger, Li-ion maintenance-free battery, variable contact pressure, foldable handle for storage, adjustable handle for operator convenience.
KART (Karcher Advanced Response Technology) rotatable brush head turns +/- 200º, allowing cleaning in reverse and at right angles.

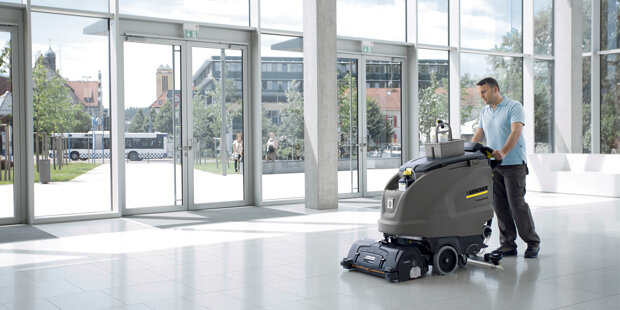

Walk-behind scrubber driers are perfect for efficient cleaning on medium-sized areas, such as in retail, swimming pools, halls, as well as corridors and aisles and on floors of many facilities.

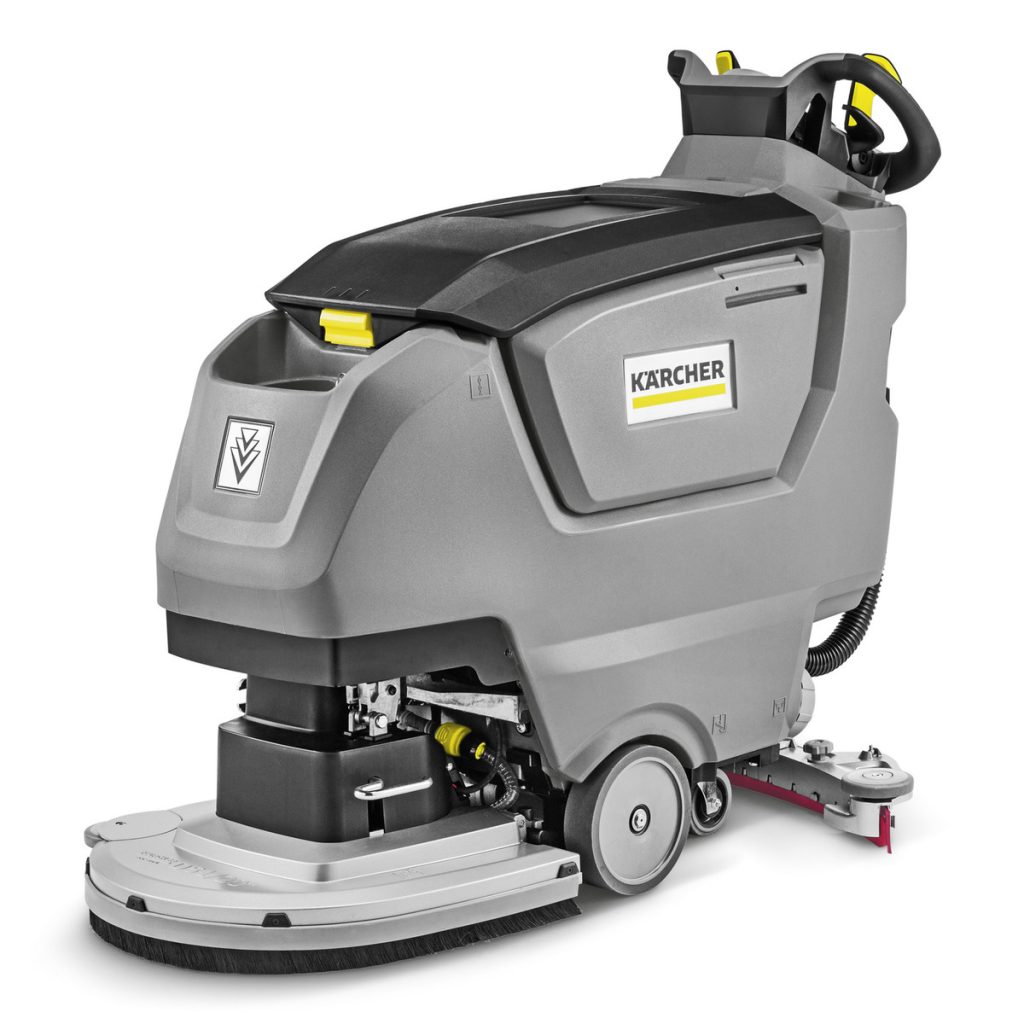

9.507-948.0 Pack Order Number
(1.533-228.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 3060 m²/hr
Fresh water tank - 50 litres
Dirty water tank - 50 litres
Working width, brush - 510 mm
Working width, vacuum - 850 mm
Brush rotation speed - 140 rpm
Water consumption - 2.5 litre/min
Aisle turning width - 1400 mm
Max. sound pressure level - 65 dB(A)
1 x Standard disc brush, curved squeegee, 2 tank system, onboard battery charger, maintenance-free batteries, tank rinsing system, auto-fill, DOSE chemical supply, FACT system (adjustment of roller brush speed for different cleaning requirements), KIK system to customise parameters to different requirements/operators, "Machine connect" smartphone app connectivity.

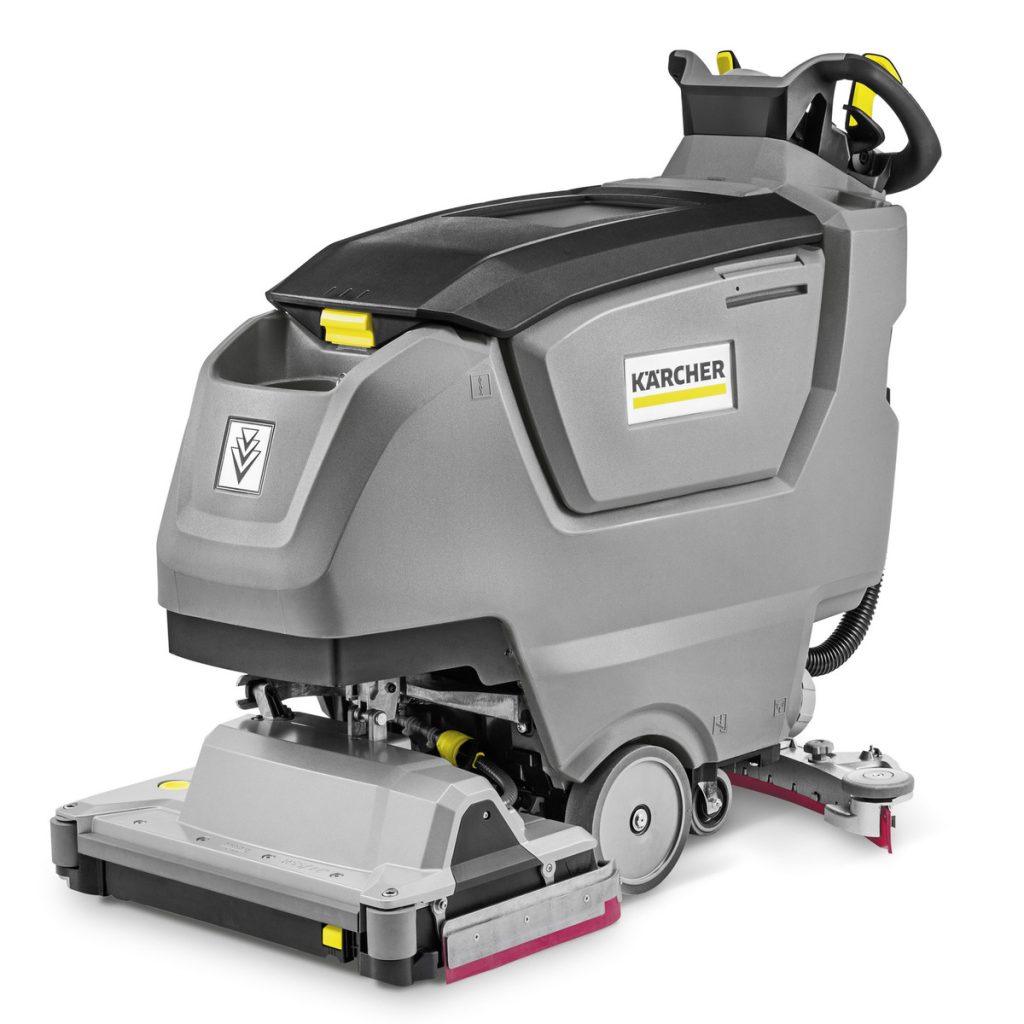

9.507-949.0 Pack Order Number
(1.533-232.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 3300 m²/hr
Fresh water tank - 50 litres
Dirty water tank - 50 litres
Working width, brush - 550 mm
Working width, vacuum - 850 mm
Brush rotation speed - 965 rpm
Water consumption - 2.6 litre/min
Aisle turning width - 1400 mm
Max. sound pressure level - 65 dB(A)
2 x Standard roller brushes, curved squeegee, 2 tank system, onboard battery charger, maintenance-free batteries, pre-sweeping attachment, tank rinsing system, auto-fill, DOSE chemical supply, FACT system (adjustment of roller brush speed for different cleaning requirements), KIK system to customise parameters to different requirements/operators, "Machine connect" smartphone app connectivity.

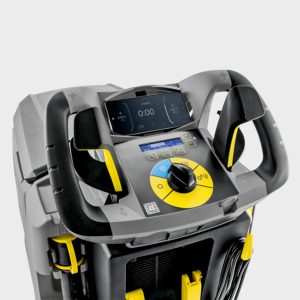

Expanded range of functions and information. Resource monitoring, increase in productivity, informative animations for maintenance and troubleshooting. Adjustment of parameters, editing of KIK authorisations.
Robust and hard-wearing components. Fewer machine downtimes and higher productivity at lower costs.

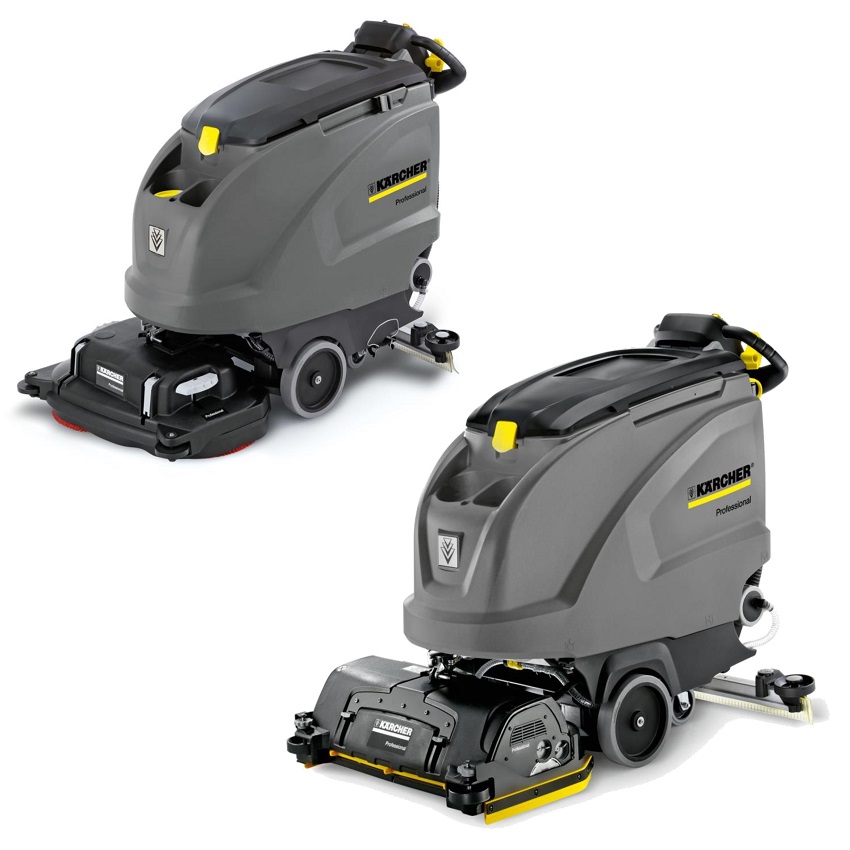

9.506-772.0 D65 Brushhead Pack Order Number
9.506-773.0 R65 Brushhead Pack Order Number
(1.533-232.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance (D65) - 2600 m²/hr
Max. area performance (R65) - 2600 m²/hr
Fresh water tank - 60 litres
Dirty water tank - 60 litres
Working width, brush (D65) - 650 mm
Working width, brush (R65) - 650 mm
Working width, vacuum - 940 mm
Max. water flow - 3.6 litres/min
Rated input power (traction motor) - 300 W
Brush contact pressure (D65) - 26 g/cm²
Brush contact pressure (R65) - 265 g/cm²
Brush rotation speed (D65) - 180 rpm
Brush rotation speed (R65) - 600-1300 rpm
Max. water temperature - 60ºC
Battery voltage - 24 V
Air quantity - 22 litres/sec
Sound pressure level - 70 dB(A)
Weight (inc 105Ah gel batt) (D65) - 185 kg
Dimensions (D65) (LxWxH) - 1520mm x 746mm x 1147mm
Standard disc brush or roller brushes, curved squeegee, tank in tank system, on-board battery charger, maintenance-free gel or low-maintenance flooded batteries, on-board cleaning agent dosing unit (adjustable up to 3%), eco!efficiency mode (reduces noise level by up to 4 dB(A) by reducing motor output and lower brush rotation speed), F.A.C.T. (Flexible Application Control Technology - roller brush speed can be adjusted to different cleaning applications - 3 settings), KIK (Karcher Intelligent Key).
1.259-013.0 D75 Brush-head Pack (Complete) Order Number
Also avail with modification to R75 Brush-head
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Standard disc brush or roller brushes, curved squeegee, tank in tank system, on-board battery charger, maintenance-free gel or low-maintenance flooded batteries, on-board cleaning agent dosing unit (adjustable up to 3%), eco!efficiency mode (reduces noise level by up to 4 dB(A) by reducing motor output and lower brush rotation speed), F.A.C.T. (Flexible Application Control Technology - roller brush speed can be adjusted to different cleaning applications - 3 settings), KIK (Karcher Intelligent Key), electrically adjustable contact pressure, automatic brush head raising function, automatic squeegee raising function, Auto-Fill (fresh water filling system), parking brake, tank rinsing, sweeping function (R75).

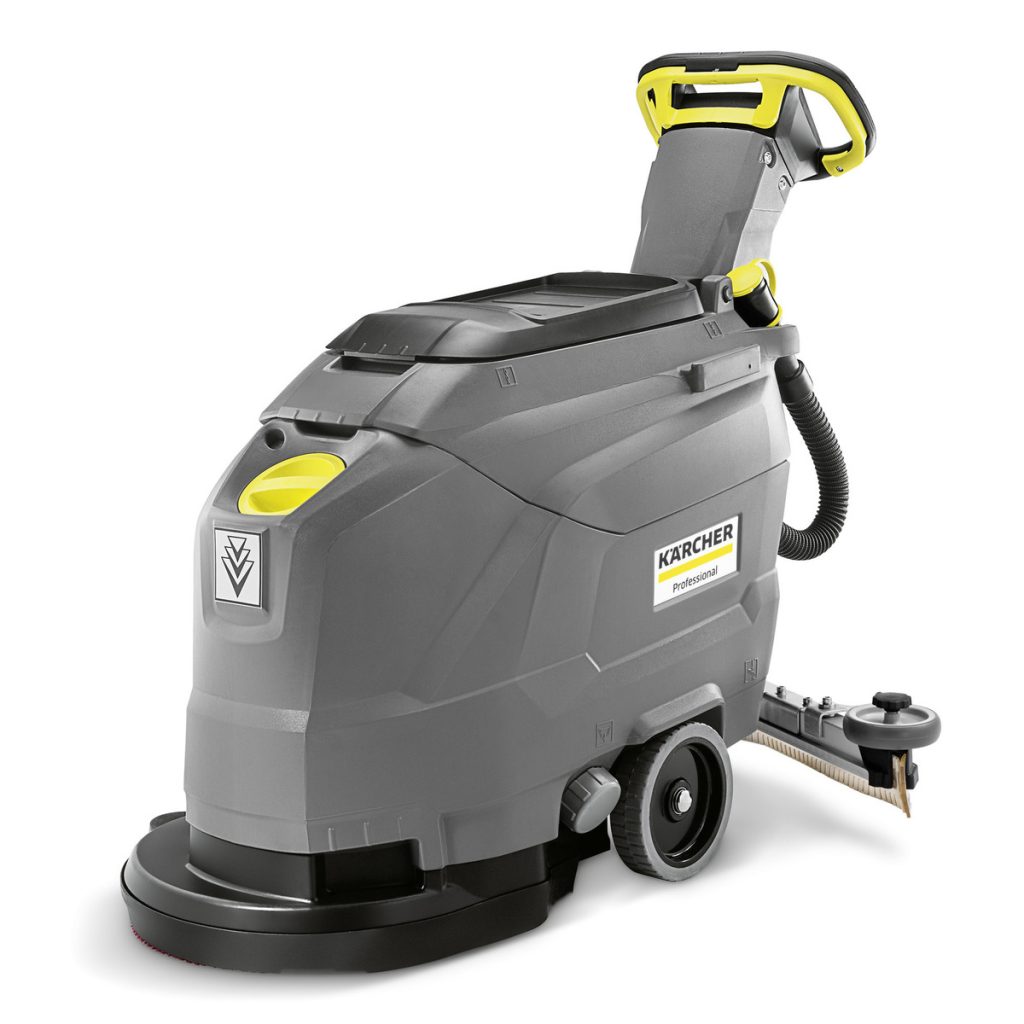

1.515-403.0 80 Ah Battery Package
(1.515-400.0 machine)
RECHARGEABLE BATTERY
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 1720 m²/hr
Fresh water tank - 25 litres
Dirty water tank - 25 litres
Working width, brush - 430 mm
Working width, vacuum - 850 mm
Brush contact pressure - 30-40 g/cm²
Brush rotation speed - 180 rpm
Battery voltage - 24 V
Air quantity - 24 litres/sec
Standard disc brush, curved or straight squeegee, 2 tank system, external battery charger, maintenance-free gel or low-maintenance flooded batteries.

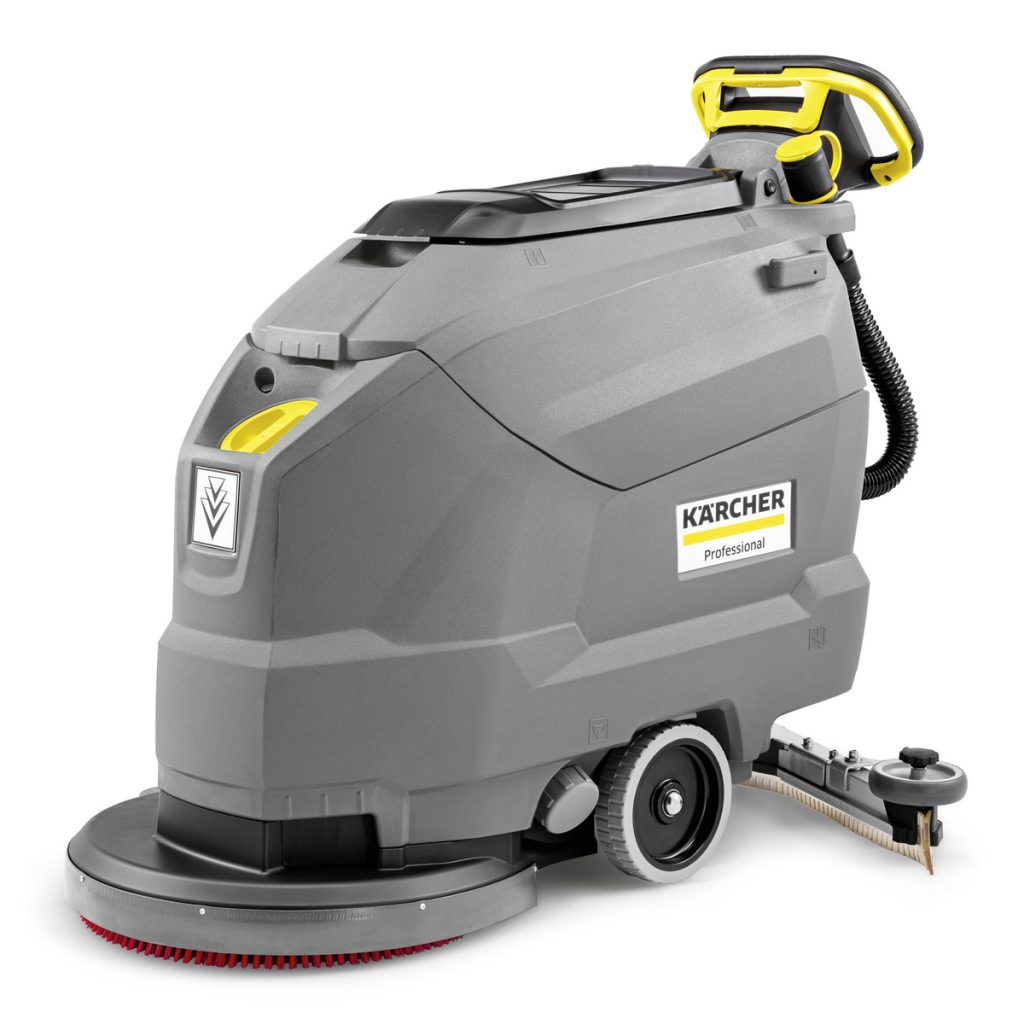

1.127-026.0 80 Ah Battery Package
(1.127-001.0 machine)
RECHARGEABLE BATTERY
MANUAL PUSH (assisted by brush rotation)
Max. area performance - 2040 m²/hr
Fresh water tank - 50 litres
Dirty water tank - 50 litres
Working width, brush - 510 mm
Working width, vacuum - 850 mm
Brush contact pressure - 27.3-28.5 g/cm²
Brush rotation speed - 180 rpm
Battery voltage - 24 V
Air quantity - 24 litres/sec
Standard disc brush, curved or straight squeegee, 2 tank system, external battery charger, maintenance-free gel or low-maintenance flooded batteries.
1.127-063.0 115 Ah Battery Package
(1.127-055.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 2550 m²/hr
Fresh water tank - 55 litres
Dirty water tank - 55 litres
Working width, brush - 510 mm
Working width, vacuum - 850 mm
Brush rotation speed - 180 rpm
Battery voltage - 24 V
Air quantity - 24 litres/sec
Standard disc brush, curved or straight squeegee, 2 tank system, external battery charger, maintenance-free gel or low-maintenance flooded batteries.
1.127-027.0 115 Ah Battery Package
(1.127-013.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 3525 m²/hr
Practical area performance - 2115 m²/hr
Fresh water tank - 75 litres
Dirty water tank - 75 litres
Working width, brush - 705 mm
Working width, vacuum - 1030 mm
Standard disc brushes, curved squeegee, 2 tank system, external battery charger, maintenance-free gel batteries.

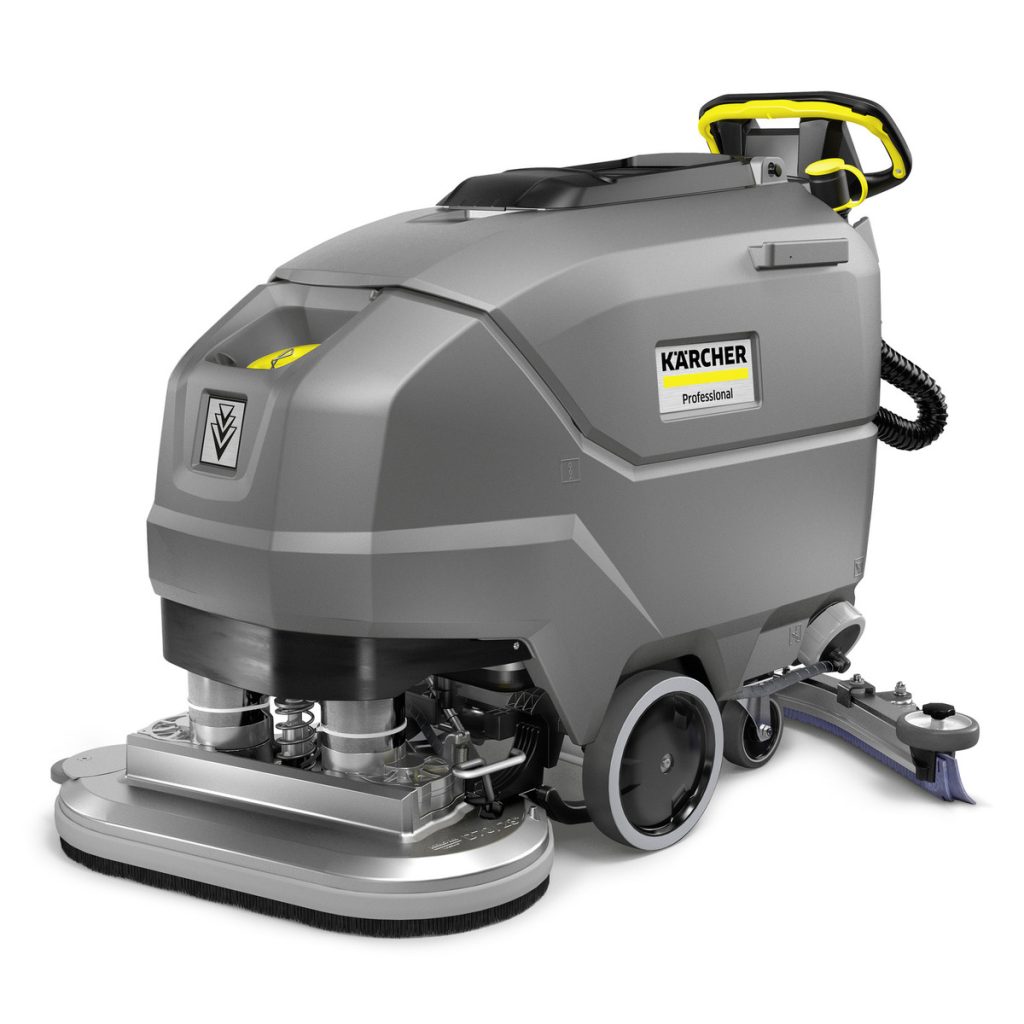

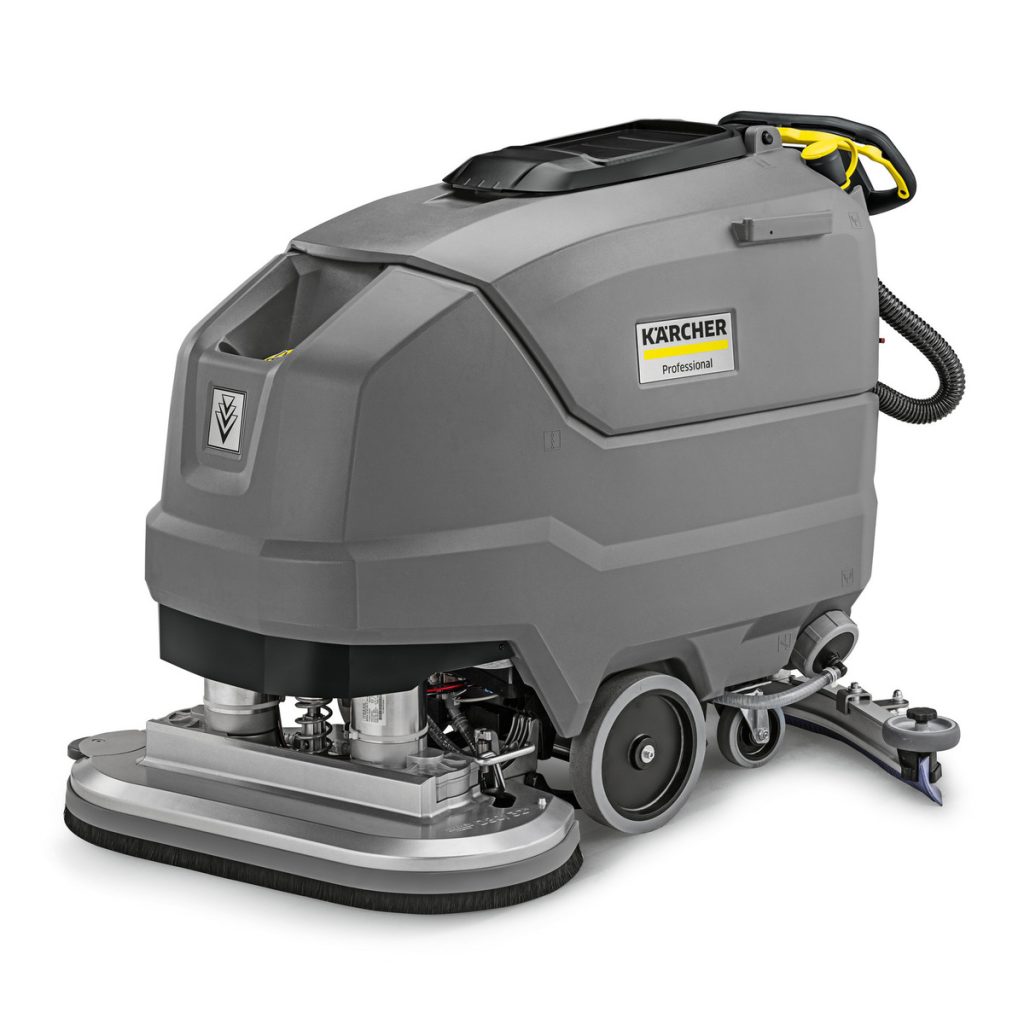

9.507-246.0 180 Ah Battery Package
9.506-778.0 240 Ah Battery Package
(1.127-012.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 4000 m²/hr
Practical area performance - 2400 m²/hr
Fresh water tank - 100 litres
Dirty water tank - 100 litres
Working width, brush - 810 mm
Working width, vacuum - 1090 mm
Standard disc brushes, curved squeegee, 2 tank system, external battery charger, maintenance-free gel batteries.
The ideal choice for cleaning large, sparsely furnished areas, such as in warehouses and production halls, shopping centres, car parks or airports. Here you also find our combined sweeper/scrubber drier machines.

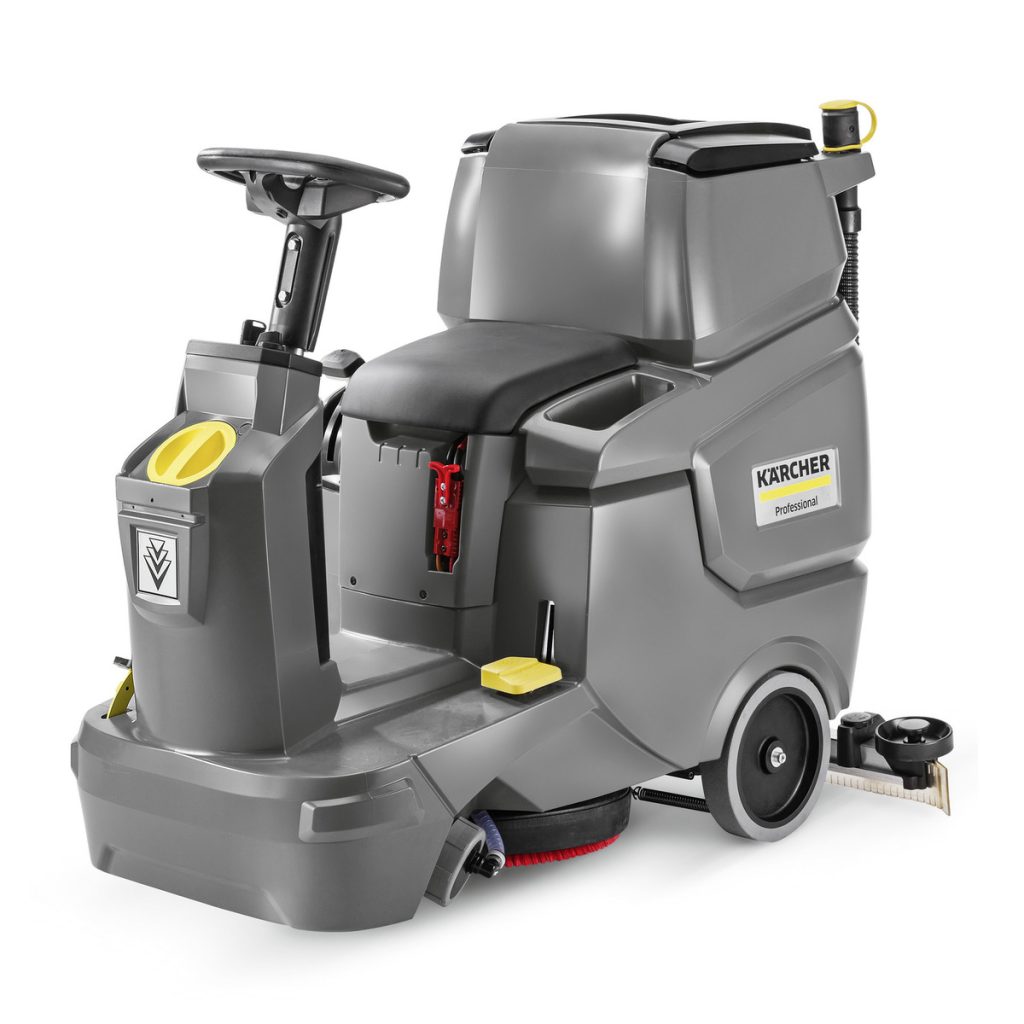

9.506-645.0 Pack Order Number
(1.161-070.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 2805 m²/hr
Practical area performance - 2000 m²/hr
Fresh water tank - 70 litres
Dirty water tank - 75 litres
Working width, brush - 510 mm
Working width, vacuum - 850 mm
Brush rotation speed - 180 rpm
Max. water consumption - 2.3 litre/min
Aisle turning width - 1650 mm
Max. sound pressure level - 66 dB(A)
1 x Standard disc brush, v-shaped squeegee, 2 tank system, external battery charger, maintenance-free batteries.

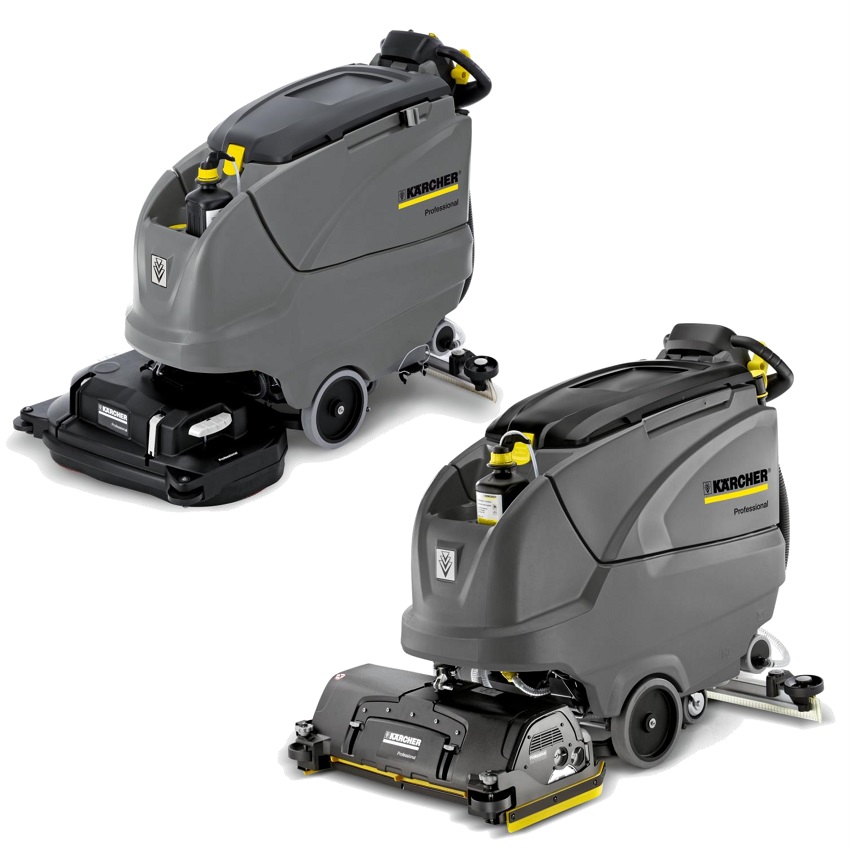

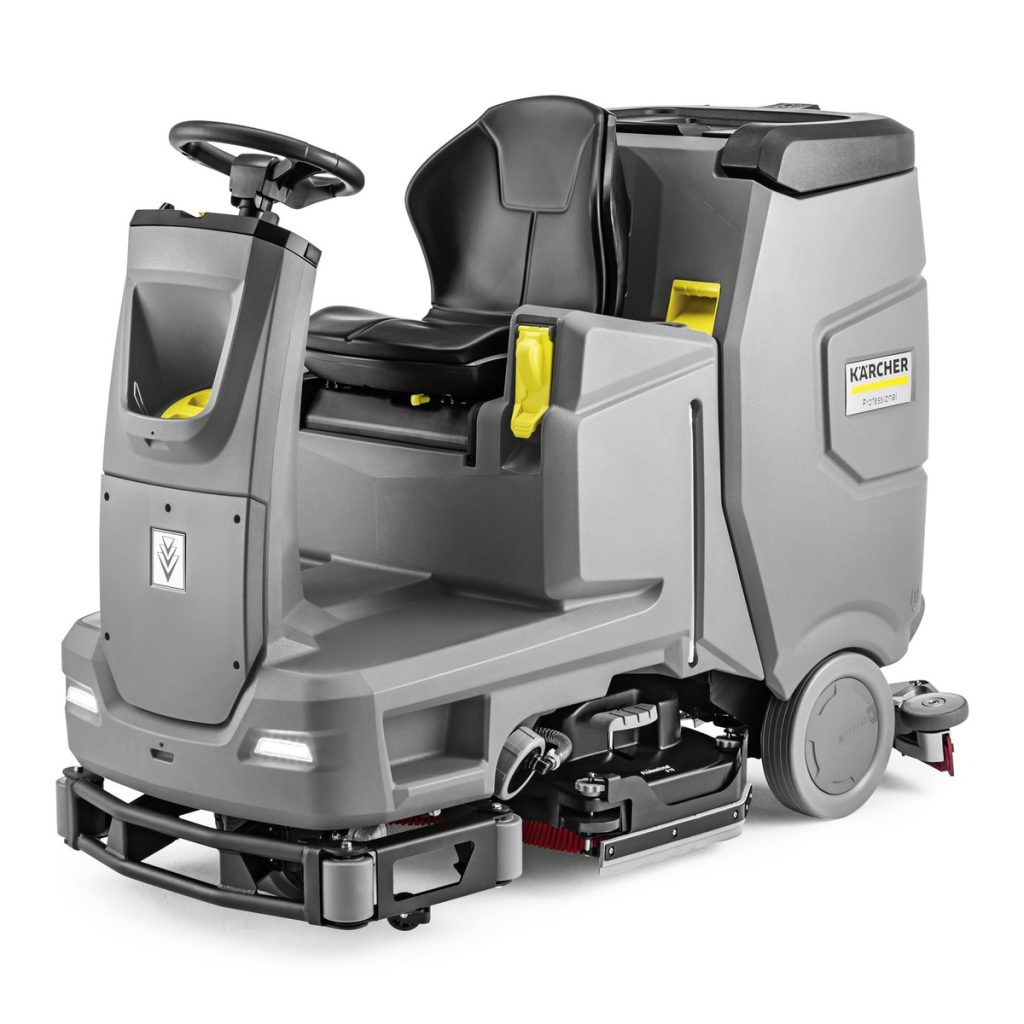

9.505-337.0 D75 180Ah Std Pack Order Number
9.505-953.0 R75 180Ah Std Pack Order Number
9.505-332.0 D75 180Ah Advanced Pack Order Number
9.505-333.0 R75 180Ah Advanced Pack Order Number
(1.161-404.0 machine)
RECHARGEABLE BATTERY
TRACTION DRIVE (Forward and reverse)
Max. area performance - 4500 m²/hr
Practical area performance - 3150 m²/hr
Fresh water tank - 110 litres
Dirty water tank - 110 litres
Working width, brush - 750 mm
Working width, vacuum - 950 mm
Brush rotation speed - 180 rpm
Max. water consumption - 5.7 litre/min
Aisle turning width - 1750 mm
Max. sound pressure level - 59 dB(A)
Standard disc/roller brushes (depending on version of brush head ordered), curved squeegee, 2 tank system, height adjustable seat, standard daytime driving light, robust front bumper, speed-dependent water dosing, Karcher Intelligent Key (KIK) system, built-in battery charger, maintenance-free batteries.

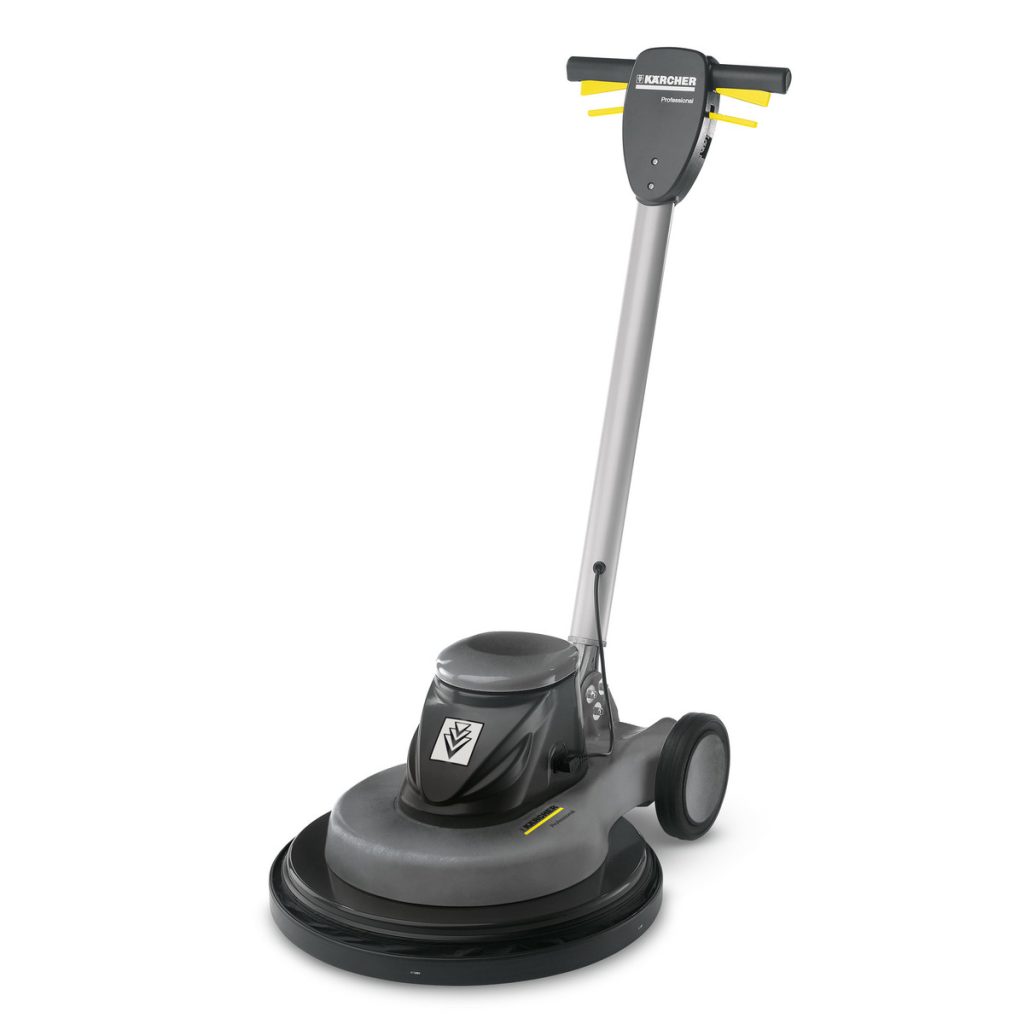

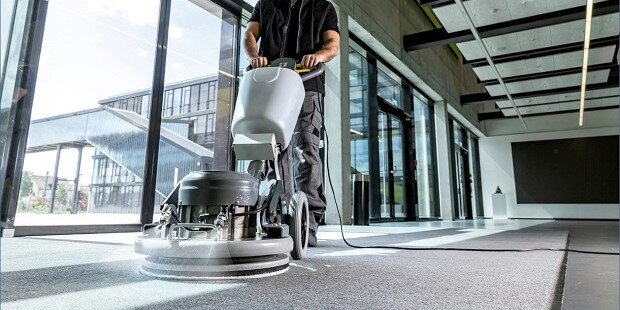

Karcher offer other solutions like single-disc and polishing machines to assist your hard surface maintenance tasks.

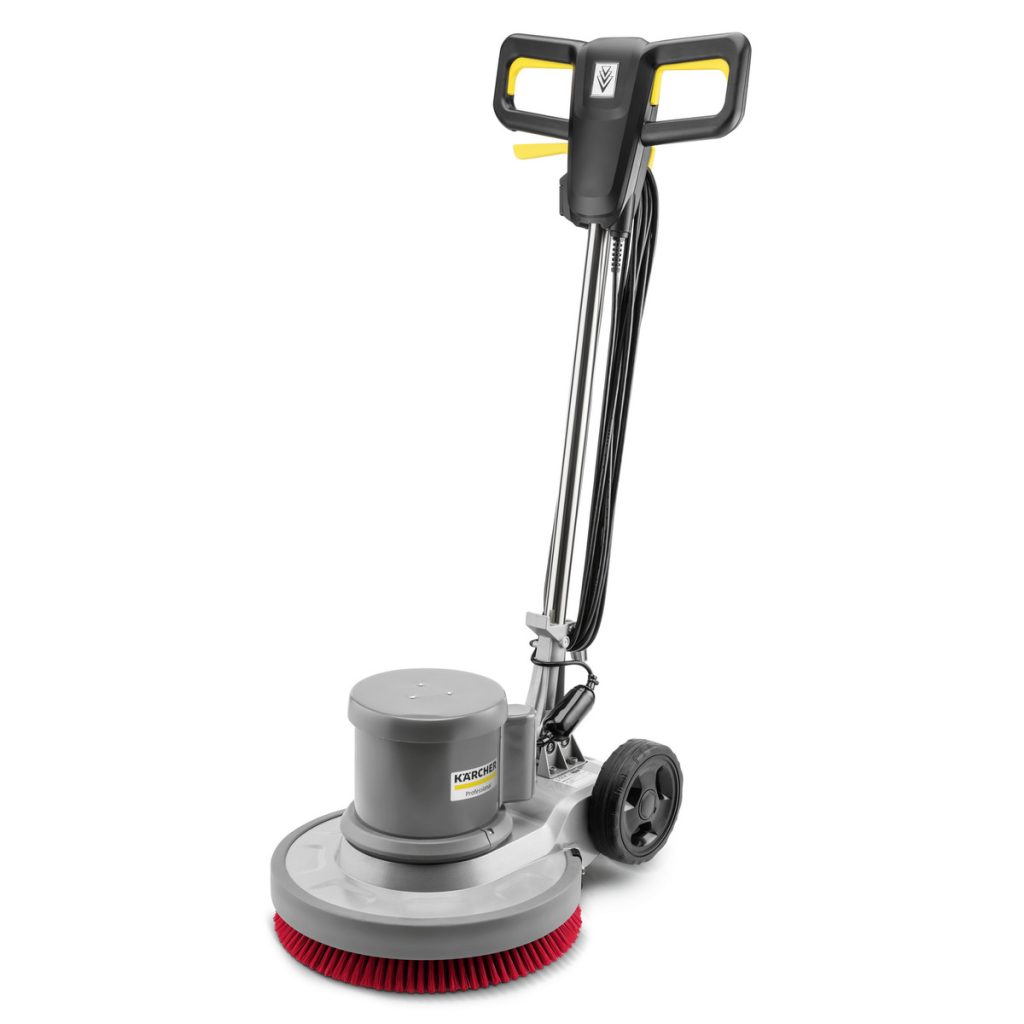

1.291-243.0
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Working width, brush - 430 mm
Working height - 90 mm
Brush contact pressure - 43 g/cm²
Brush rotation speed - 150 rpm
Power cord length - 15 m
Max. sound pressure level - 66 dB(A)
Weight - 44 kg
Dimensions (LxWxH) 940mm x 430mm x 1105mm
Pad drive board (420mm)
Optional 10L tank
Cleaning pads 432mm or Disc brush 430mm sold separately

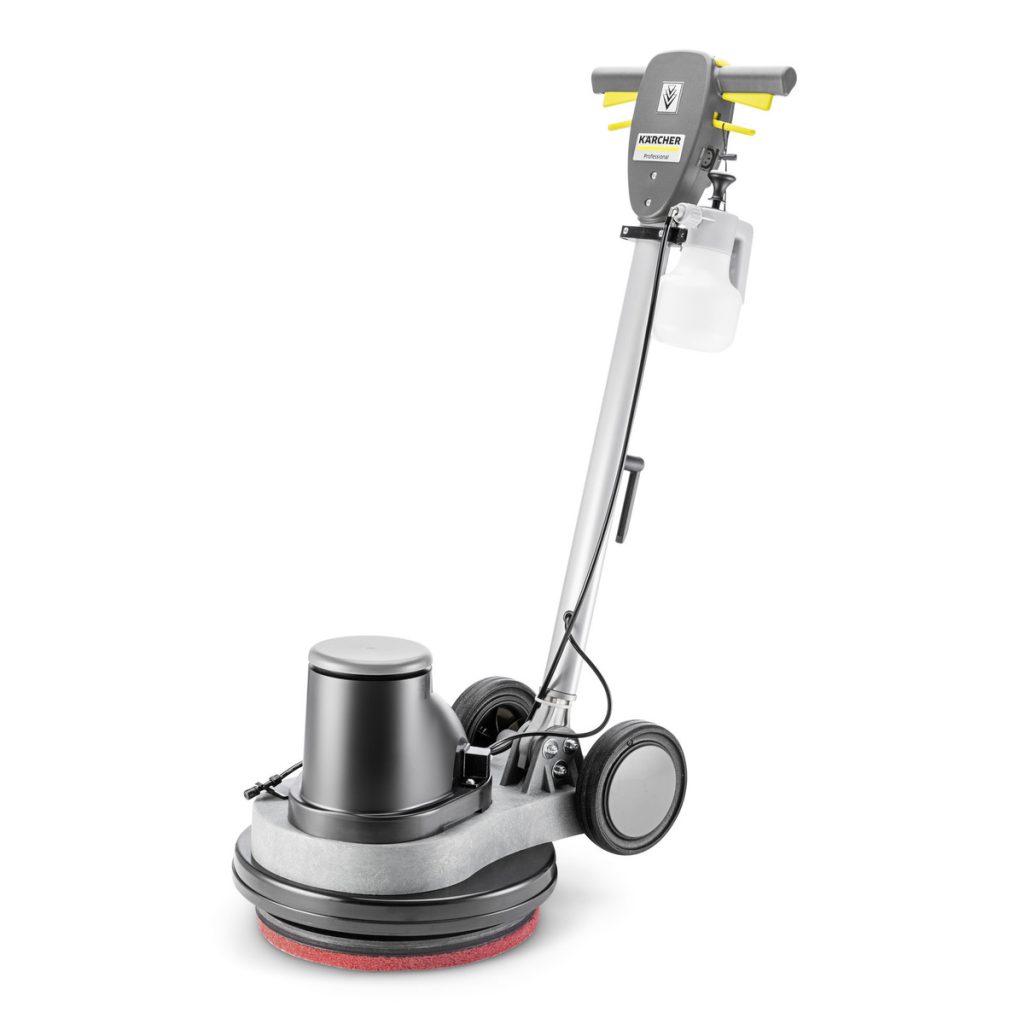

1.291-251.0
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Working width, brush - 430 mm
Pad drive board (430mm)
Optional 12L tank
Cleaning pads 432mm or Disc brush 430mm sold separately

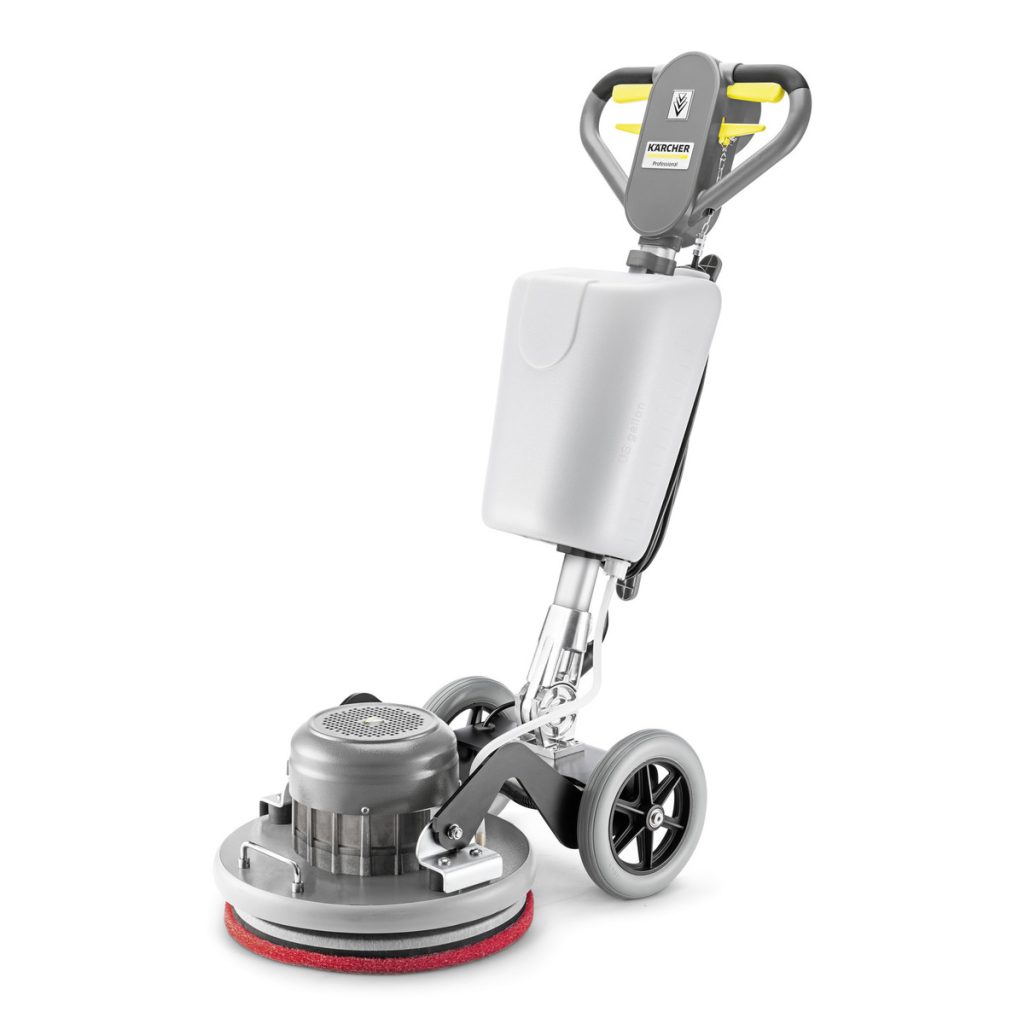

1.291-252.0
1.291-253.0 (with pump spray)
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Working width, brush - 430 mm
Working height - 100 mm
Fresh water tank - 12 L
Brush contact pressure - 38-55 g/cm²
Brush rotation speed - 60 rpm
Oscillations - 1500 O/min
Max. sound pressure level - 54 dB(A)
Weight - 52 kg
Dimensions (LxWxH) 1070mm x 570mm x 430mm
Pad driver plate
Optional 10L tank
Cleaning pads 432mm sold separately
1.291-141.0
10 AMP SINGLE PHASE
MANUAL PUSH (assisted by brush rotation)
Working width, brush - 500 mm
Filter bag volume - 1 L
Brush contact pressure - 4 g/cm²
Brush rotation speed - 1500 rpm
Power cord length - 20 m
Max. sound pressure level - 56 dB(A)
Weight - 35.4 kg
Dimensions (LxWxH) 760mm x 560mm x 1260mm
Pad driver plate
Cleaning pads 508mm sold separately
Dust collection by passive vacuuming into filter bag
Pad drive board is spring mounted for automatic contact pressure
