Flexible in use, efficient in practice: Kärcher’s sweepers and vacuum sweepers impress across the board. Their flexibility, easy handling and cleaning results make sweeping tasks easier than ever.
High performance sweeping: vacuum sweepers remove dirt of all kinds from interior and exterior surfaces. How are they different from sweepers? When in use, the vacuum sweeper disperses debris into the machine using a roller brush, then any dust in the hopper is drawn into a filter system using a suction turbine (fan), thus expelling clean air into the workplace.

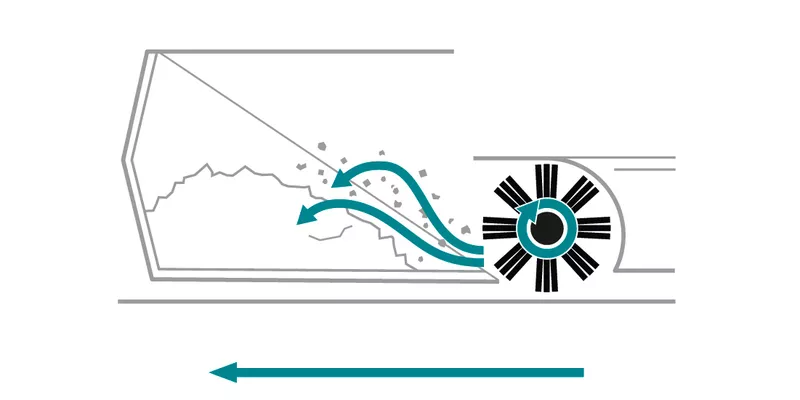

The roller brush turns in the opposite direction to the direction of travel. Consequently, dirt is moved to the front of the sweeper and into the waste container (direct dirt pick-up). Kärcher’s push sweepers and industrial vacuum sweepers operate in line with this principle.
Advantages:

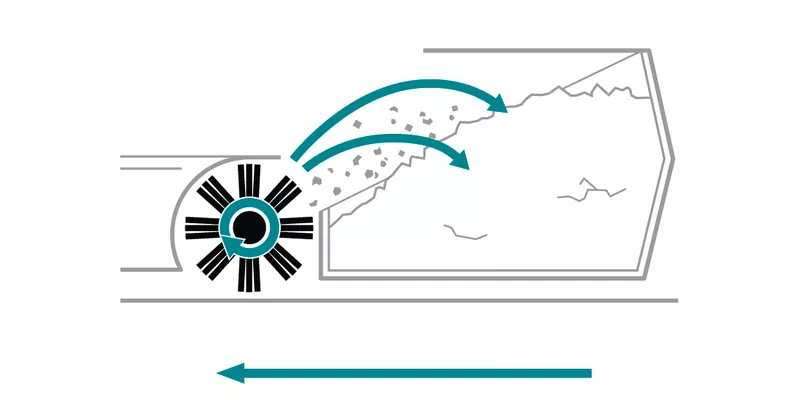

The dirt is collected in the opposite direction to the direction of travel and is moved into the back dirt container via the main roller brush. Kärcher’s walk-behind vacuum sweepers and ride-on vacuum sweepers operate in line with this principle.
Advantages:

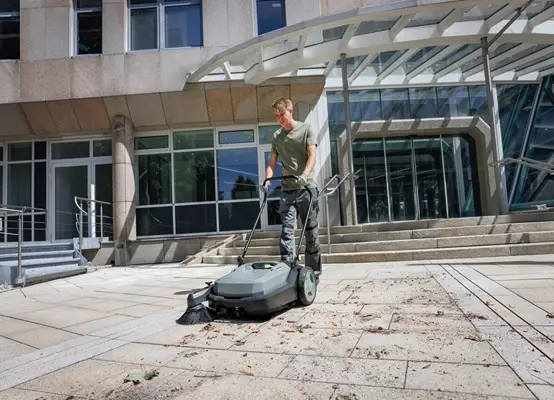

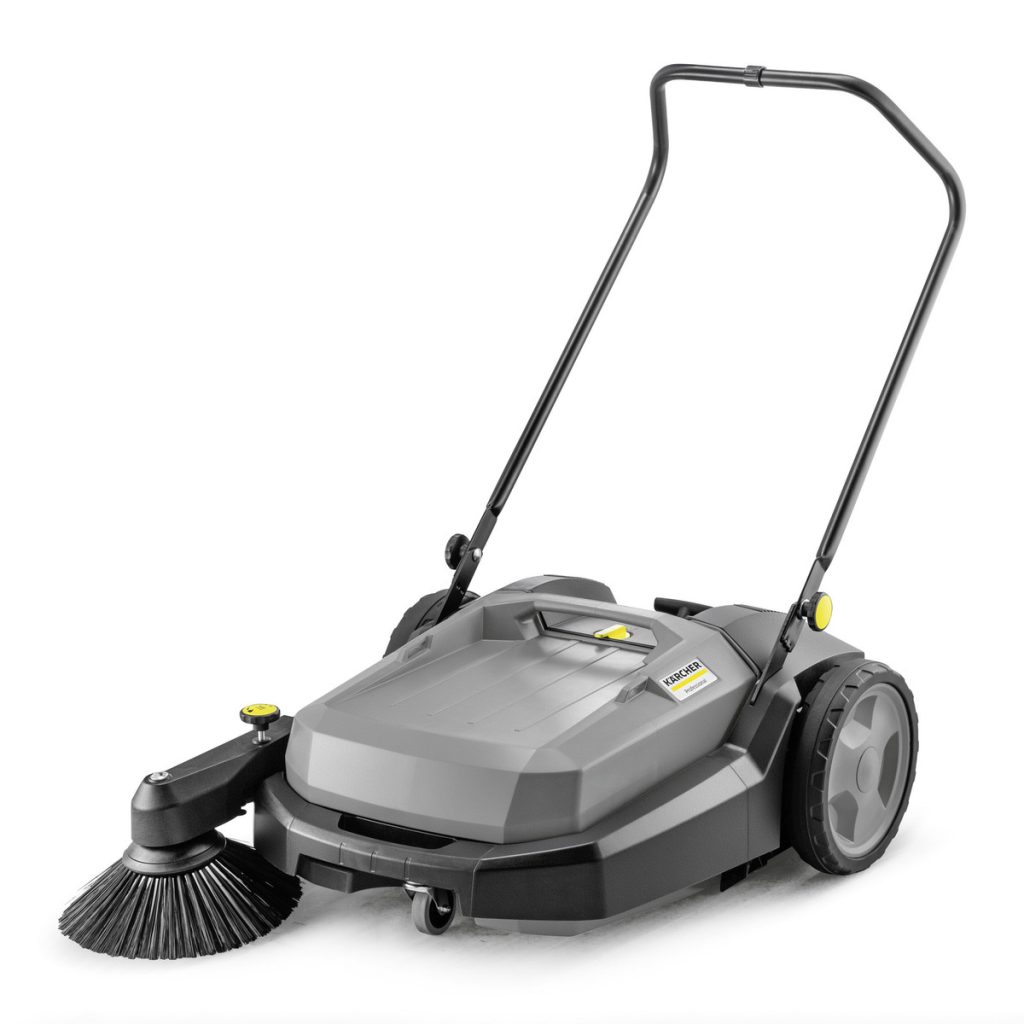

Designed for: courtyards, paths, workshops, halls and many more applications.
Benefits: compact, ergonomic, and easy to use, delivering thorough cleaning and low dust development (even in corners).
Perfect for: caretakers, tradesmen, contract cleaners, and industry professionals.
Recommended area: 2800-3825 m² max performance area
Max. area performance - 2800 m²/hr
Working width - 480 mm
Working width (1 side brush) - 700 mm
Working width (2 side brushes) - N/A
Fine dust filter foam, adjustable main roller brush, continuously adjustable side brush, fold down push handle, manual sweep drive, dustpan principle (net container capacity 20 litre).

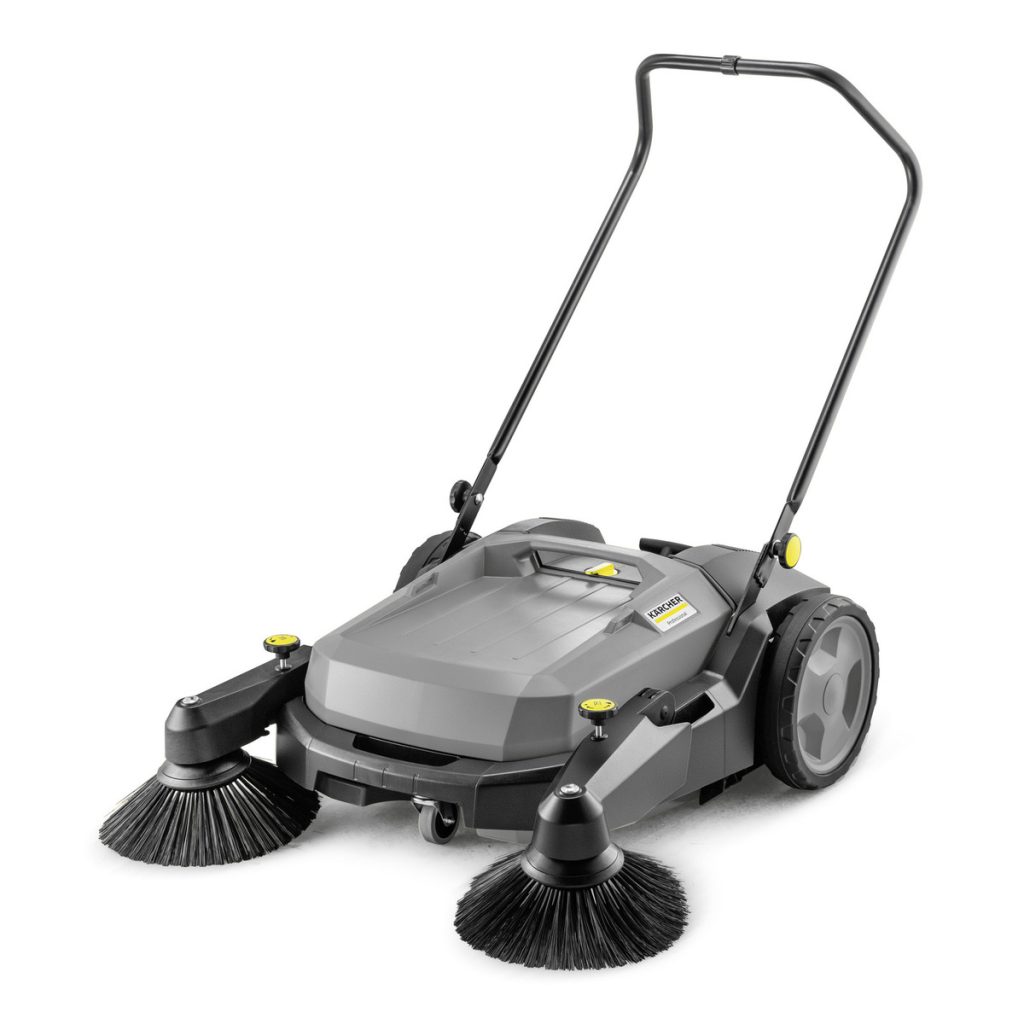

Max. area performance - 3920 m²/hr
Working width - 480 mm
Working width (1 side brush) - 700 mm
Working width (2 side brushes) - 980 mm
Fine dust filter foam, adjustable main roller brush, continuously adjustable side brush, fold down push handle, manual sweep drive, dustpan principle (net container capacity 20 litre).

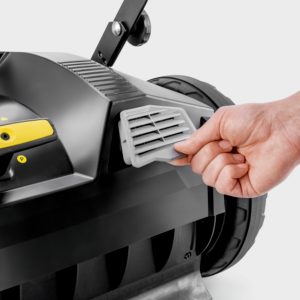

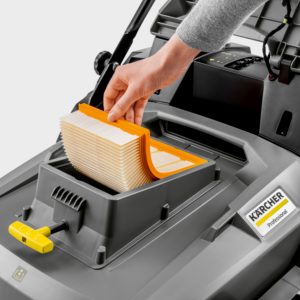

The dust filter cleans the exhaust air and prevents dust from flying up during sweeping. The filter system is easily accessible for quick and easy replacement.

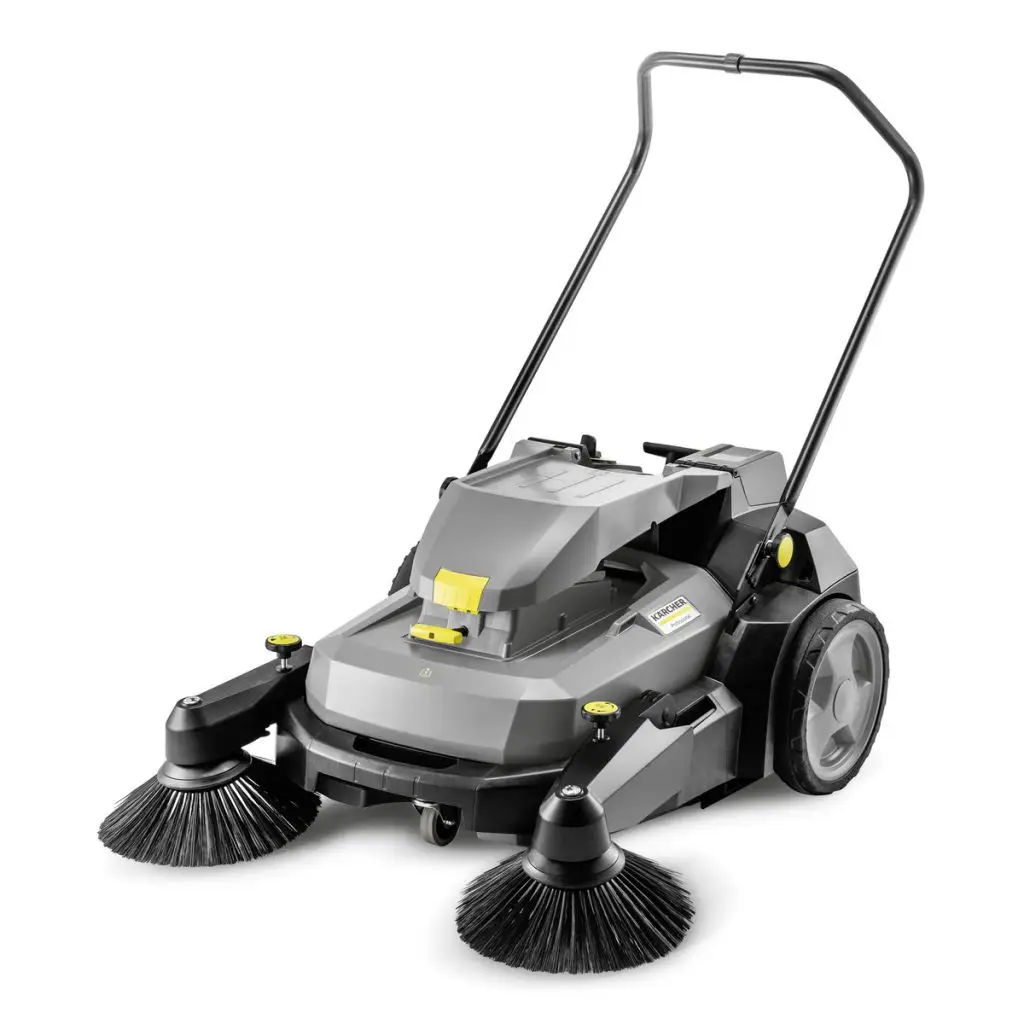

36V BATTERY PLATFORM
Working width - 480 mm
Working width (1 side brush) - 700 mm
Working width (2 side brush) - 980 mm
Filter surface area - 0.6 m²
Nominal power (brush drive) - 37.5 W
Nominal power (vacuum) - 30 W
6.0Ah Battery charging time with fast charger (80% / 100%) - 44 min / 68 min
7.5Ah Battery charging time with fast charger (80% / 100%) - 58 min / 92 min
Air quantity - 18.6 litres/sec
Sound pressure level - 51 dB(A)
Manual push with an electrically driven main and side brushes, flat pleated filter, manual filter cleaning system, improved main brush with raised park setting, adjustable main roller brush, continuously adjustable side brushes, tool free side brush and filter replacement, fold down push handle, dustpan principle (net container capacity 20 litre), waste container lock.

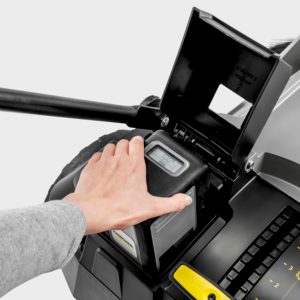

The battery run time can be selected according to the area to be cleaned. Fast and intermediate charging for longer operating times and higher productivity. Displays the remaining battery run time when sweeping.
Reduces the amount of dust created and provides a clean working environment. Filter replacement without tools. The manual filter shaker ensures the best sweeping result, even with fine dust.

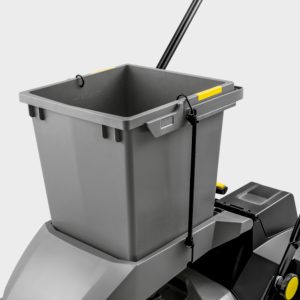

Additional cleaning utensils can be carried on-board. Increases efficiency and saves you the extra effort. Coarse dirt can be collected and disposed of with ease.
2.445-051.0
2.042-022.0
Weight - 1.527 kg
2.445-043.0
Weight - 2.074 kg
9.506-641.0 Pack Order Number
(1.049-206.0 machine)
RECHARGEABLE BATTERY

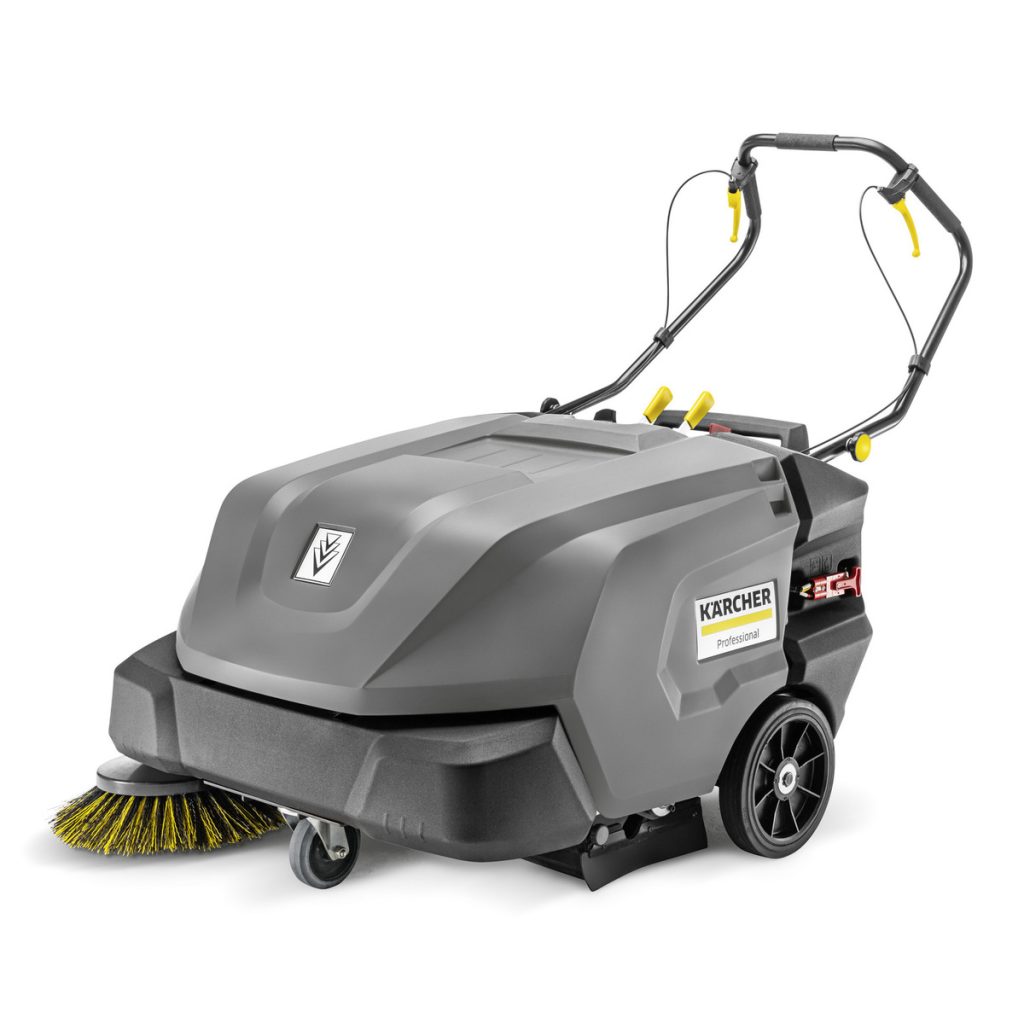

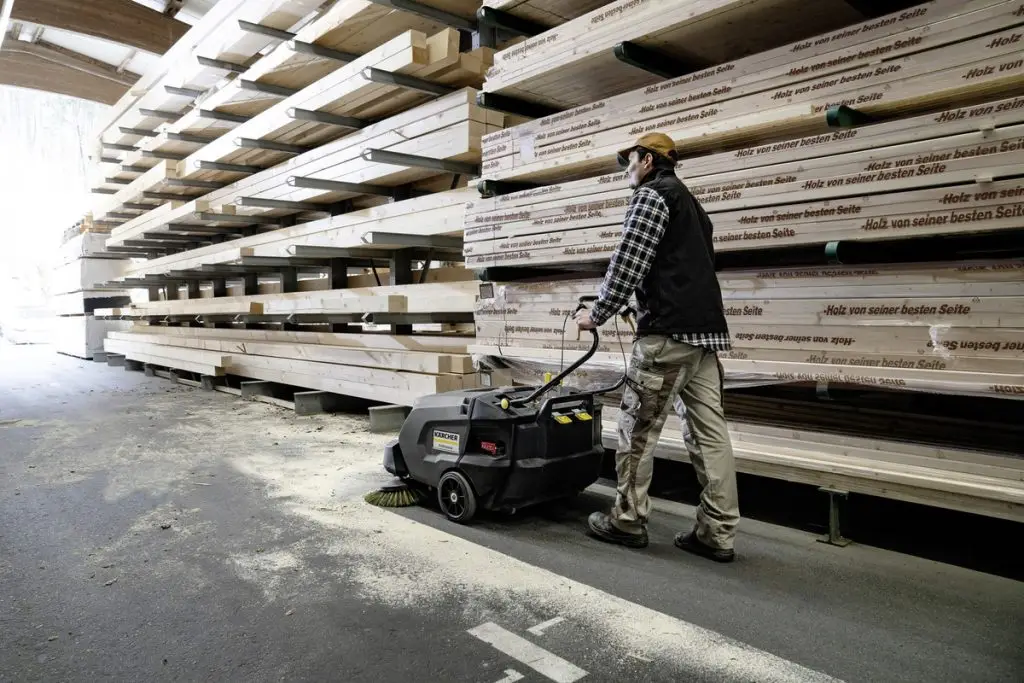

Max. area performance - 3375 m²/hr
Working width - 550 mm
Working width (1 side brush) - 750 mm
Filter surface area - 1.8 m²
Rated power - 400 W
Climbing capacity - 12%
Working speed - 4.5 km/h
Battery voltage - 24 V
Battery running time (max.) - 2.5 hrs
Charging time rechargeable battery - 12 hrs
Air quantity - 45 litres/sec
Sound pressure level - 71 dB(A)
Weight (inc batteries) - 125 kg
Fine dust polyester flat pleated filter, manual filter cleaning system, adjustable main roller brush, adjustable side brush - can be raised, fold down push handle, maintenance-free battery, external charger, battery indicator, electric sweep drive, overthrow principle allowing 100% capacity, mobile waste container - trolley handle, coarse dirt flap, adjustable suction power.
Pack includes battery and charger.

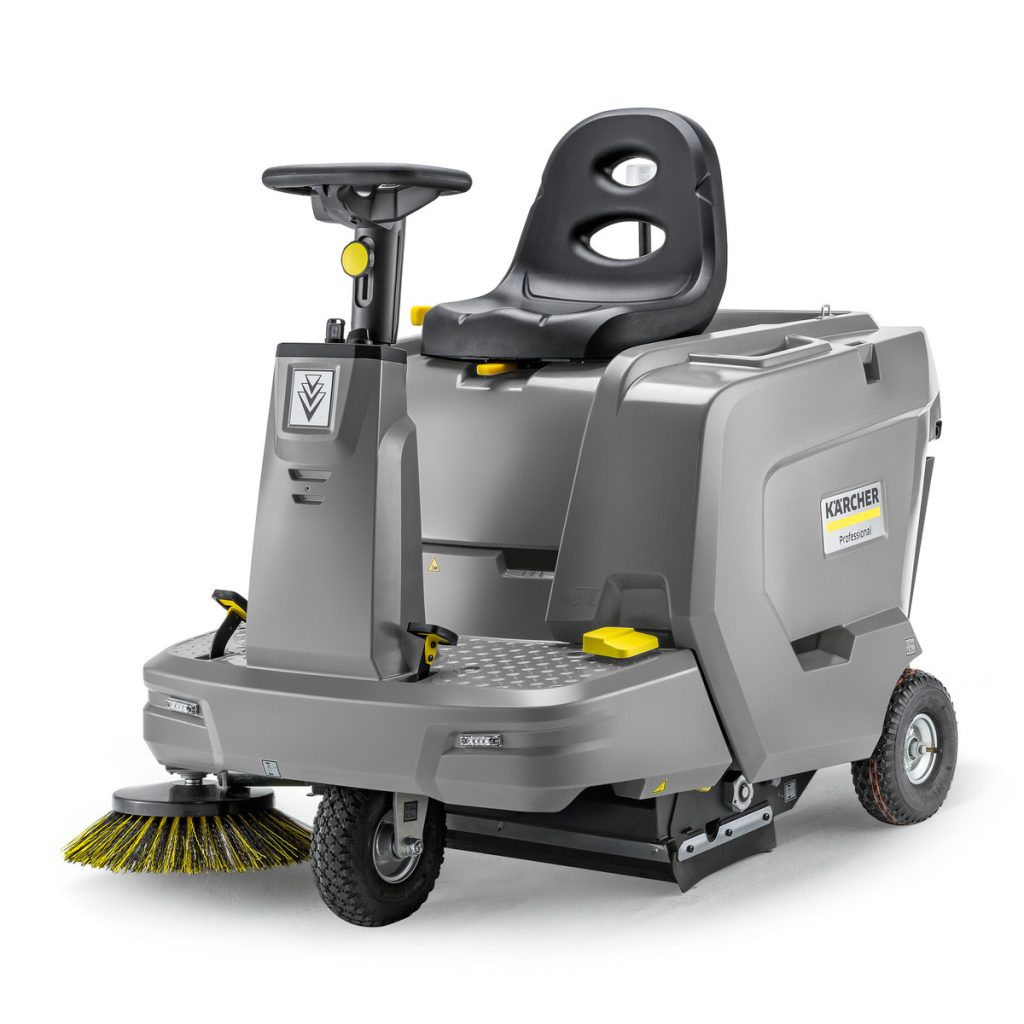

Max. area performance - 3825 m²/hr
Working width - 615 mm
Working width (1 side brush) - 850 mm
Filter surface area - 2.3 m²
Rated power - 912 W
Climbing capacity - 15%
Working speed forward - 4.5 km/h
Battery voltage - 24 V
Battery running time (max.) - 2.5 hrs
Charging time rechargeable battery - 12 hrs
Air quantity - 45 litres/sec
Sound pressure level - 84 dB(A)
Weight (inc batteries) - 138.4 kg
Fine dust polyester flat pleated filter, manual filter cleaning system, floating main roller brush, adjustable side brush - can be raised, swerving side brush to prevent damage, fold down push handle, maintenance-free battery, external charger, battery indicator, electric sweep drive, forward and reverse traction drive via the push handle, overthrow principle allowing 100% capacity, mobile waste container - trolley handle, coarse dirt flap, adjustable suction power.
Pack includes battery and charger.
Designed for: all medium to sized to large-sized areas.
Benefits: economical, clean, and ultra-efficient, incorporating the latest advancements in customer-focused cleaning technology. Built for easy handling, access, and servicing.
Perfect for: caretakers, tradesmen, contract cleaners, and industry professionals.
Recommended area: 1500-23,800 SQM max performance area
Max. area performance - 5100 m²/hr
Working width - 615 mm
Working width (1 side brush) - 850 mm
Filter surface area - 2.3 m²
Climbing capacity - 12%
Working speed forward - 6 km/h
Battery voltage - 24 V
Battery running time (max.) - 2.5 hrs
Charging time rechargeable battery - 12 hrs
Air quantity - 45 litres/sec
Sound pressure level - 84 dB(A)
Weight (inc batteries) - 177.5 kg
Fine dust polyester flat pleated filter, manual filter cleaning system, floating main roller brush, automatic wear adjustment of the main sweeper roller, adjustable side brush speed, side brush swings out automatically, adjustable suction power, maintenance-free battery, external charger, electric sweep drive, overthrow principle allowing 100% capacity, mobile waste container, coarse dirt flap, multi-function display, operating hour counter, battery indicator, adjustable side brush speed, automatic wear adjustment of the main sweeper roller.
Pack includes battery and charger.
Max. area performance (G) with 1 / 2 side brushes - 8000 / 10400 m²/hr
Working width - 700 mm
Working width (1 side brush) - 1000 mm
Working width (2 side brushes) - 1300 mm
Filter surface area - 6 m²
Climbing capacity (Bp) - 15%
Climbing capacity (G) - 18%
Working speed (Bp) - 6 km/h
Working speed (G) - 8 km/h
Fuel tank capacity (G) - 6 Litres
Battery voltage (Bp) - 24 V
Battery running time(Bp)(approx) - 2.5 hrs
Charging time (Bp) rechargeable battery - 10-15 hrs
Air quantity - 50 litres/sec
Sound pressure level (Bp) - 75 dB(A)
Sound pressure level (G) - 79 dB(A)
Weight (Bp inc batteries) - 540 kg
Weight (G) - 340 kg
Fine dust polyester round pleated filter, manual/automatic filter cleaning system, floating main roller brush, side brush and roller brush hydraulically driven, maintenance-free battery (Bp), external charger (Bp), 9 Hp Honda GX 270 4 stroke petrol engine (G), electric sweep drive, overthrow principle allowing 100% capacity, 2 x 50 litre removeable waste containers, coarse dirt flap, adjustable suction power, battery indicator (Bp), operating hour counter.
Bp Pack includes batteries and charger.
TRACTION DRIVE (Forward & Reverse)
Max. area performance (Bp) with 1 / 2 side brushes - 6000 / 7620 m²/hr
Max. area performance (G) with 1 / 2 side brushes - 7000 / 8890 m²/hr
Working width - 730 mm
Working width (1 side brush) - 1000 mm
Working width (2 side brushes) - 1270 mm
Filter surface area - 6 m²
Climbing capacity (Bp) - 12%
Climbing capacity (G) - 18%
Working speed (Bp) - 5 km/h
Working speed (G) - 7 km/h
Fuel tank capacity (G) - 5.3 Litres
Battery voltage (Bp) - 24 V
Battery running time(Bp)(approx) - 3.5 hrs
Charging time (Bp) rechargeable battery - 10-15 hrs
Air quantity - 58 litres/sec
Sound pressure level (Bp) - 74 dB(A)
Sound pressure level (G) - 79 dB(A)
Weight (Bp inc batteries) - 748 kg
Weight (G) - 573 kg
Fine dust polyester round pleated filter, manual/automatic filter cleaning system, floating main roller brush, side brush and roller brush hydraulically driven, maintenance-free battery (Bp), external charger (Bp), 9 Hp Honda GX 270 4 stroke petrol engine (G), electric sweep drive, overthrow principle allowing 100% capacity, hydraulic high dump of waste container (up to 1520mm high), coarse dirt flap, adjustable suction power, battery indicator (Bp), operating hour counter, side brush automatically swings out, side brush pheumatically controlled.
Bp Pack includes batteries and charger.
Max. area performance - 6300 m²/hr
Working width (1 side brush) - 1050 mm
Filter surface area - 5.2 m²
Working speed forward - 6 km/h
Battery running time (max.) - 2.5 hrs
Sound pressure level - 93 dB(A)
Fine dust fleece pocket filter, manual/automatic filter cleaning system, floating main roller brush, side brush and roller brush hydraulically driven, maintenance-free battery, external charger, dustpan principle, hydraulic high dump of waste container (up to 1340mm high), coarse dirt flap, adjustable suction power, battery indicator, operating hour counter, side brush automatically swings out, solid rubber wheels.
Bp Pack includes batteries and charger.
TRACTION DRIVE (Forward & Reverse)
Max. area performance (Bp) with 1 / 2 side brushes - 7200 / 8700 m²/hr
Max. area performance (LPG/D) with 1 / 2 side brushes - 10800 / 13000 m²/hr
Working width - 900 mm
Working width (1 side brush) - 1200 mm
Working width (2 side brushes) - 1450 mm
Max. unloading height - 1400 mm
Filter surface area - 6 m²
Rated power (Bp) - 5 kW
Rated power (LPG) - 17.5 kW
Rated power (D) - 15.8 kW
Climbing capacity (Bp) - 14%
Climbing capacity (LPG/D) - 18%
Working speed (Bp) - 6 km/h
Working speed (LPG/D) - 9 km/h
Battery voltage (Bp) - 36 V
Air quantity - 222 litres/sec
Sound pressure level (Bp) - 70 dB(A)
Sound pressure level (LPG) - 83 dB(A)
Sound pressure level (D) - 83 dB(A)
Weight (Bp inc batteries) - 1200 kg
Weight (LPG) - 800 kg
Pocket filter, manual filter cleaning system, adjustable main roller brush, side brush swings out automatically, maintenance-free battery (Bp), external charger (Bp), WG972 GL-E3 Kubota 740cc LPG gas engine (LPG), 3TNV76A Yanmar 1116cc diesel engine (D), sweeping function - selectable, dustpan principle, hydraulic lift waste container emptying, adjustable suction power, battery indicator (Bp), operating hour counter, power steering, solid rubber wheels.
Bp Pack includes batteries and charger.
Max. area performance (LPG/D) with 1 / 2 side brushes - 13000 / 15500 m²/hr
Working width - 1000 mm
Working width (1 side brush) - 1300 mm
Working width (2 side brushes) - 1550 mm
Max. unloading height - 1400 mm
Filter surface area - 5.5 m²
Rated power (LPG) - 17.5 kW
Rated power (D) - 15.8 kW
Climbing capacity (LPG/D) - 18%
Working speed (LPG/D) - 10 km/h
Air quantity - 222 litres/sec
Sound pressure level (LPG) - 80 dB(A)
Sound pressure level (D) - 80 dB(A)
Weight (LPG) - 900 kg
Weight (D) - 923 kg
Flat pleated filter, manual filter cleaning system, adjustable main roller brush, side brush swings out automatically, WG972 GL-E3 Kubota 740cc LPG gas engine (LPG), 3TNV76A Yanmar 1116cc diesel engine (D), sweeping function - selectable, dustpan principle, hydraulic lift waste container emptying, adjustable suction power, hydraulic traction drive and main sweeper roller/side brush drive, operating hour counter, power steering, solid rubber wheels.
TRACTION DRIVE (Forward & Reverse)
Max. area performance (LPG/D) with 1 / 2 side brushes - 18000 / 21600 m²/hr
Working width - 1200 mm
Working width (1 side brush) - 1500 mm
Working width (2 side brushes) - 1800 mm
Max. unloading height - 1470 mm
Filter surface area (LPG) - 7 m²
Filter surface area (D) - 10.5 m²
Rated power (LPG) - 22 kW
Rated power (D) - 15.8 kW
Climbing capacity (LPG/D) - 18%
Working speed (LPG/D) - 12 km/h
Air quantity - 458 litres/sec
Sound pressure level (LPG) - 80 dB(A)
Sound pressure level (D) - 80 dB(A)
Weight (LPG) - 1450 kg
Weight (D) - 1400 kg
Pocket filter (D Classic), polyester flat pleated filter (LPG), manual filter cleaning system, adjustable main roller brush, side brush swings out automatically, WG972 GL-E3 Kubota 740cc LPG gas engine (LPG), 3TNV76A Yanmar 1116cc diesel engine (D), sweeping function - selectable, dustpan principle, hydraulic lift waste container emptying, adjustable suction power, operating hour counter, power steering, hydraulic traction drive and main sweeper roller/side brush drive, solid rubber wheels.
TRACTION DRIVE (Forward & Reverse)
Max. area performance with 1 / 2 side brushes - 23800 / 28000 m²/hr
Working width - 1344 mm
Working width (1 side brush) - 1700 mm
Working width (2 side brushes) - 2000 mm
Max. unloading height - 1540 mm
Filter surface areas - 9.1 m²
Rated power - 18.5 kW
Climbing capacity - 18%
Working speed - 12 km/h
Air quantity - 458 litres/sec
Sound pressure level - 82 dB(A)
Weight - 1698 kg
Dimensions (LxWxH) 2742mm x 1904mm x 2213mm
Pocket filter, manual filter cleaning system, adjustable main roller brush, side brush swings out automatically, Kubota V1505-E4B water cooled diesel engine, sweeping function - selectable, dustpan principle, hydraulic lift waste container emptying, adjustable suction power, operating hour counter, power steering, hydraulic traction drive and main sweeper roller/side brush drive, pneumatic wheels.
TRACTION DRIVE (Forward & Reverse)

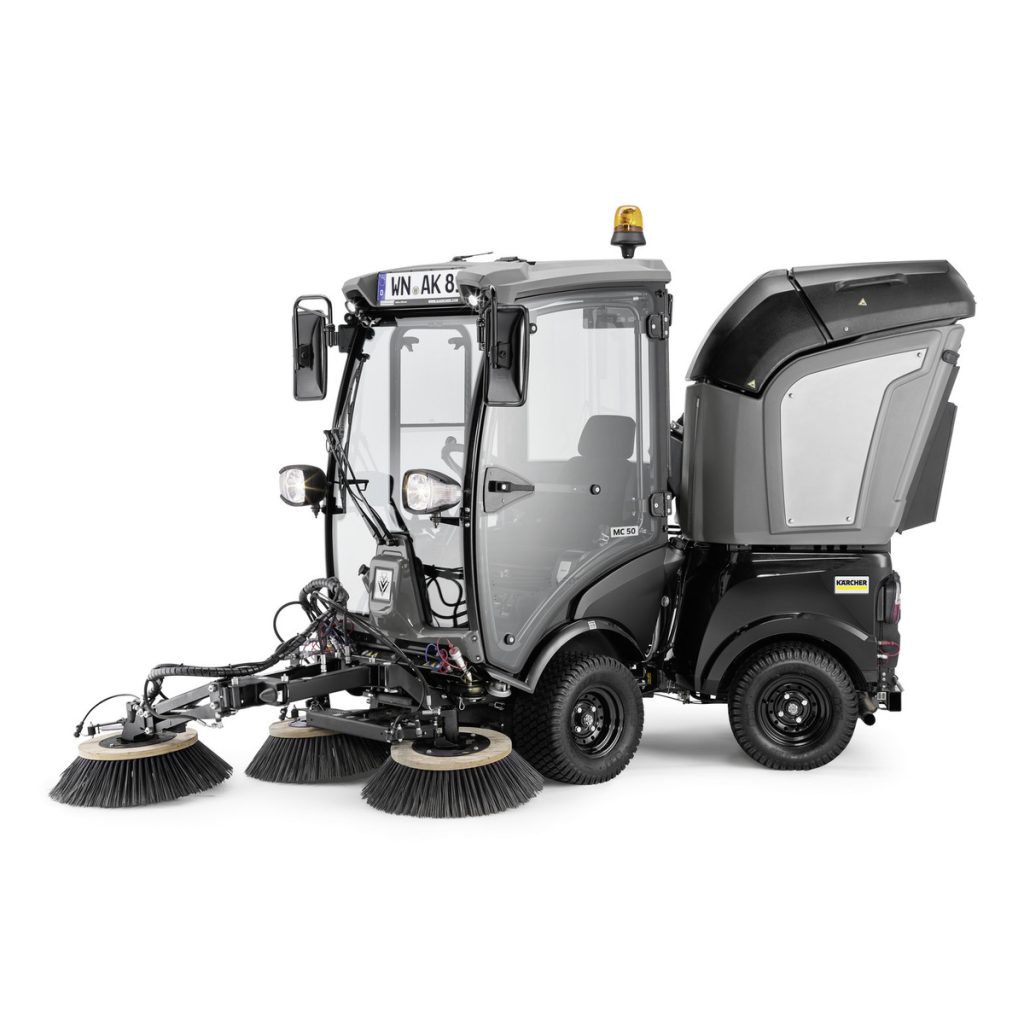

Working width (2 side brushes) - 1400 mm
Working width with 3rd side brush - 2000 mm
Container capacity - 700 litre
Water reservoir - 165 litre
Max. unloading height - 1400 mm
Rated power - 18.9 kW
Climbing capacity - 25%
Travel speed - 20 km/h
Working speed - 10 km/h
Turning radius - 750 mm
Weight (empty) - 1200 kg
Panorama cab with safety glass, 2 rear-view mirrors, left and right doors, comfort seat, heating and air conditioning, 3TNV76 Yanmar 1116cc diesel engine, sweeping and vacuum, hydraulic lift waste container emptying, adjustable suction power, operating hour counter for sweeping mechanism, rotating warning beacon, coarse dirt flap, water spraying system suppresses dust around side brushes and in intake duct, adjustable side brush speed.
